The working principle of TOF laser ranging radar is to emit a very short light pulse onto the object being measured, and then receive the light pulse reflected back from the object. By measuring the round-trip time of light pulses from emission to reception, and calculating the distance from the source to the object being measured based on the formula "distance=speed of light x time difference".
Technical features
High precision: The TOF LiDAR ranging model has the advantages of simplicity, directness, and high accuracy.
High frequency: The LR series laser ranging radar has a ranging frequency of up to 2000Hz and has super strong distance sensing ability.
Wide application: The TOF LiDAR ranging model is widely used in fields such as autonomous driving, robotics, and drones. In the field of autonomous driving, the TOF LiDAR ranging model can be used to achieve obstacle detection and avoidance for vehicles; In the field of robotics, the TOF LiDAR ranging model can be used to achieve environmental perception and navigation of robots; In the field of drones, the TOF LiDAR ranging model can be used to achieve high-precision positioning and obstacle avoidance of drones.
STA-LR-C180 180m TOF Laser Ranging Radar Sensor is a cost-effective long-range single point laser ranging radar sensor, which has been greatly upgraded and optimized based on DeTof. The ranging range can reach up to 180m, with a more efficient optical system and better circuit design. While ensuring higher ranging performance, it also has excellent performance in blind spots and power consumption. With the upgrade and optimization of algorithms, the error performance in different environments has also significantly improved.
View More
STA-LR-C120m TOF Laser Ranging Radar Sensor is a cost-effective long-range single point laser ranging radar sensor, which has been greatly upgraded and optimized based on DeTof. The ranging range can reach up to 120m, with a more efficient optical system and better circuit design. While ensuring higher ranging performance, it also has excellent performance in blind spots and power consumption. With the upgrade and optimization of algorithms, the error performance in different environments has also significantly improved.
View More
STA-LR-B60m TOF Laser Ranging Radar Sensor is a cost-effective mid-range laser ranging radar sensor that has been significantly upgraded and optimized based on DeTof. Its ranging range can reach up to 60m, with a more efficient optical system and optimized circuit design. While ensuring higher ranging performance, it also exhibits excellent performance in blind spots and power consumption. With the upgrade and optimization of algorithms, the error performance in different environments has also significantly improved.
View More
STA-LR-B40m TOF Laser Ranging Radar Sensor is a cost-effective mid-range laser ranging radar sensor that has been significantly upgraded and optimized based on DeTof. Its ranging range can reach up to 40m, with a more efficient optical system and optimized circuit design. While ensuring higher ranging performance, it also exhibits excellent performance in blind spots and power consumption. With the upgrade and optimization of algorithms, the error performance in different environments has also significantly improved.
View More

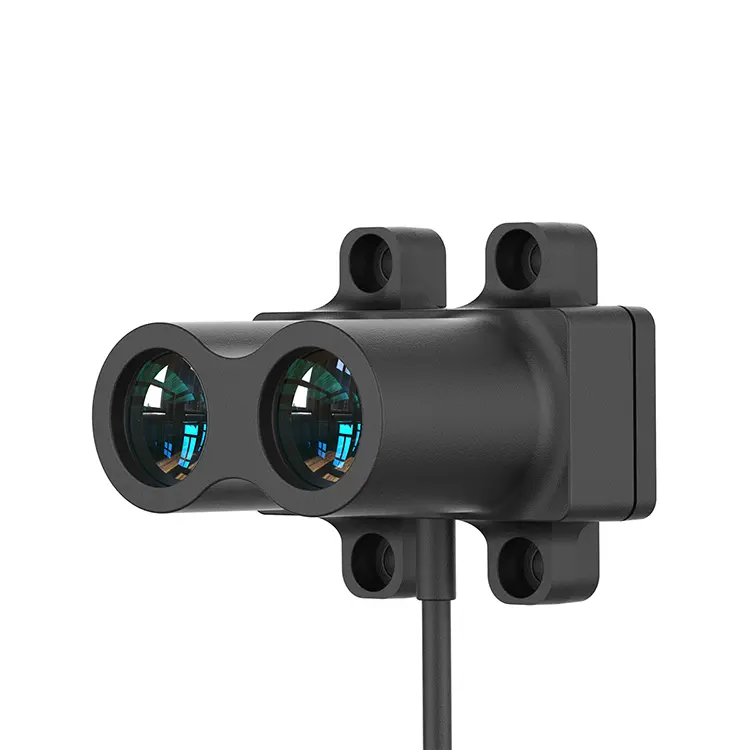

STA-LR-A20m TOF Laser Ranging Radar Sensor is a cost-effective short-range laser ranging radar sensor that has been significantly upgraded and optimized based on DeTof. Its range can reach up to 20m, with a more efficient optical system and optimized circuit design. While ensuring higher ranging performance, it also exhibits excellent performance in blind spots and power consumption. With the upgrade and optimization of algorithms, the error performance in different environments has also significantly improved.
View More

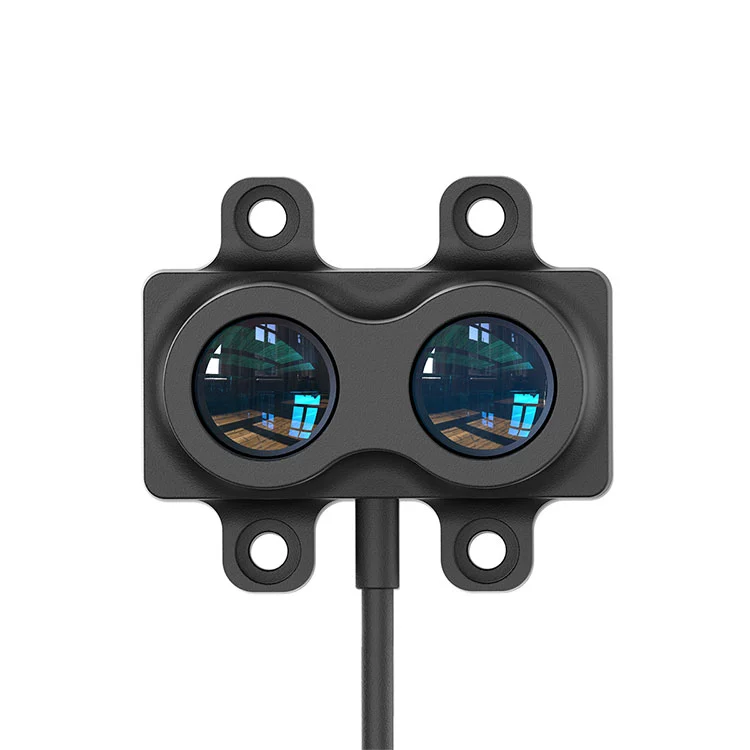

The STA-LR series TOF Laser Ranging Radar Sensor adopts the innovative pulse TOF principle, which can achieve fast and stable ranging in 5 ranges (20/40/60/120/180 meters), and control the accuracy within ± d * 0.5% (90% reflectivity), with measurement fluctuations<3cm (90% reflectivity), ensuring continuous and stable ranging and accurate measurement.
View More
For more information on our products, please contact Jioptik.
