JioptiK is a professional China 905nm LRF Module manufacturer and supplier. High performance 905nm OEM laser ranging sensor solutions enable your innovation.
The 905nm semiconductor laser module, which is safe for human eyes, has the characteristics of small size, low power consumption, long operating distance, etc., and is widely used in night vision, thermal imaging, miniaturized UAV pod and other handheld mobile device integration.
The 905nm laser rangefinder module has TTL serial communication, provides communication protocol instructions, facilitates secondary development, and builds its own rangefinder system platform
● JIO-D09C 2km Micro Laser Rangefinder Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
● Max range ≥2000m
● Ranging accuracy ± 1m
● Ranging frequency: Single ranging / Continuous ranging
● Weight 13g ±0.5g
STA-L15X 1.5km Micro Laser Rangefinder Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
Max Range:1500m
Measurement of Building≥1200m
Measurement of trees ≥900m
Measurement accuracy ±1m
Weight ≤10g
This 30Hz 270m Laser Rangefinder Module can quickly and accurately provide distance measurement for the main control system. The module uses a 905nm semiconductor laser with a ranging resolution of 0.1m and an accuracy of 1m. It features a TTL interface (direct communication with MCU) and can also communicate via a 485 serial port with a data converter (requires a data transfer cable). Additionally, it provides an upper computer test software and instruction set communication protocol for easy secondary development and construction of a customer's own ranging platform system. It is a ranging sensor with high integration, low power consumption, and light weight.
View More
The JIO-W012X 1.2km LRF Module is a new lightweight and compact ranging module, working at 905nm wavelength. Using UART-TTL interface, equipped with test software, convenient for further development, with the characteristics of small size, light weight and reliable performance. Suitable for thermal imaging, UAV pod, night vision instrument and other equipment integration.
Measurement range: 5-1200 /1500meters
Measurement of trees ≥800 meters
Measurement of deer ≥ 500 meters
Measurement accuracy ±1m
Weight ≤20g

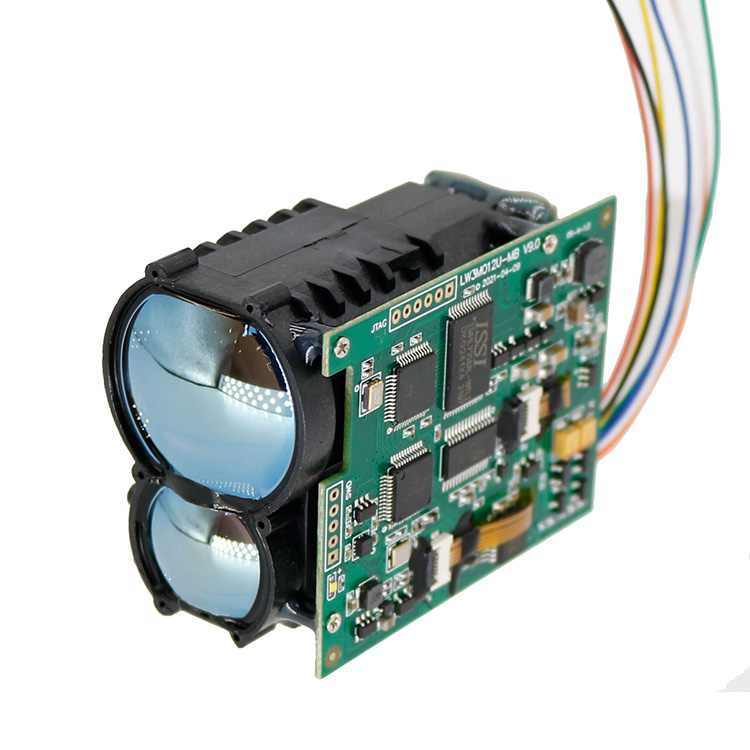

JIO-M40X 4km LRF Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
Measurement range: 5-4500 meters
Measurement of trees ≥3300 meters
Measurement of deer ≥ 1800 meters
Measurement accuracy ±1m
Weight ≤38g
Jioptik high quality JIO-M30X 3km LRF Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
Measurement range: 5-3500 meters
Measurement of trees ≥2500 meters
Measurement of deer ≥ 1500 meters
Measurement accuracy ±1m
Weight ≤38g
China Jioptik JIO-M18X 2.3km Laser Rangefinder Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
Measurement range: 5-2300 meters
Measurement of trees ≥2000 meters
Measurement of deer ≥1200 meters
Measurement accuracy ±1m
Weight ≤32g
Jioptik supplier's JIO-M020X 2km Laser Rangefinder Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
Measurement range: 5-2000 meters
Measurement of trees ≥ 1400 meters
Measurement of deer ≥ 800 meters
Measurement accuracy ±1m
Weight ≤14g
JIO-M010X 1km Laser Rangefinder Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
Measurement range: 5-1000 meters
Measurement of trees ≥ 800 meters
Measurement of deer ≥ 500 meters
Measurement accuracy ±1m
Weight ≤14g
For more information on our products, please contact Jioptik.
