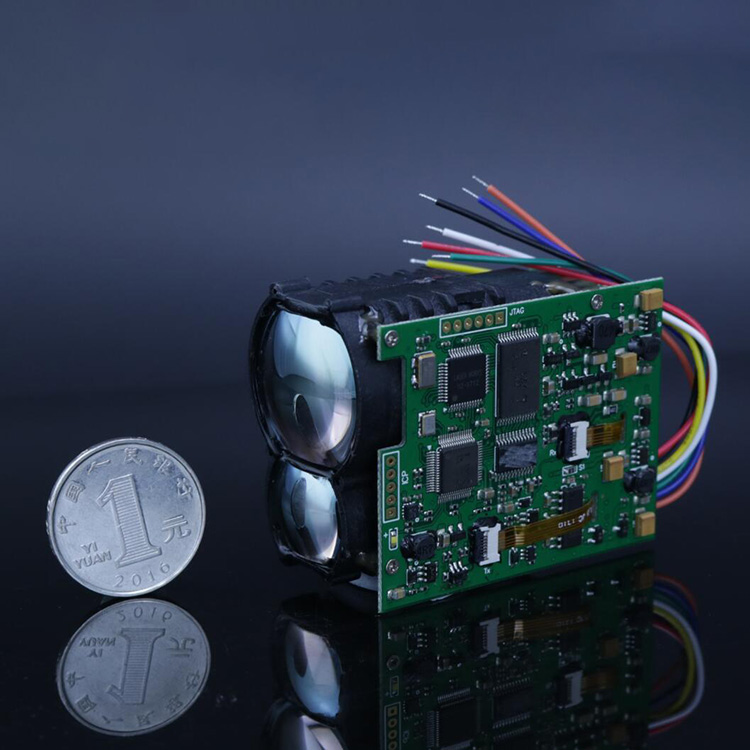

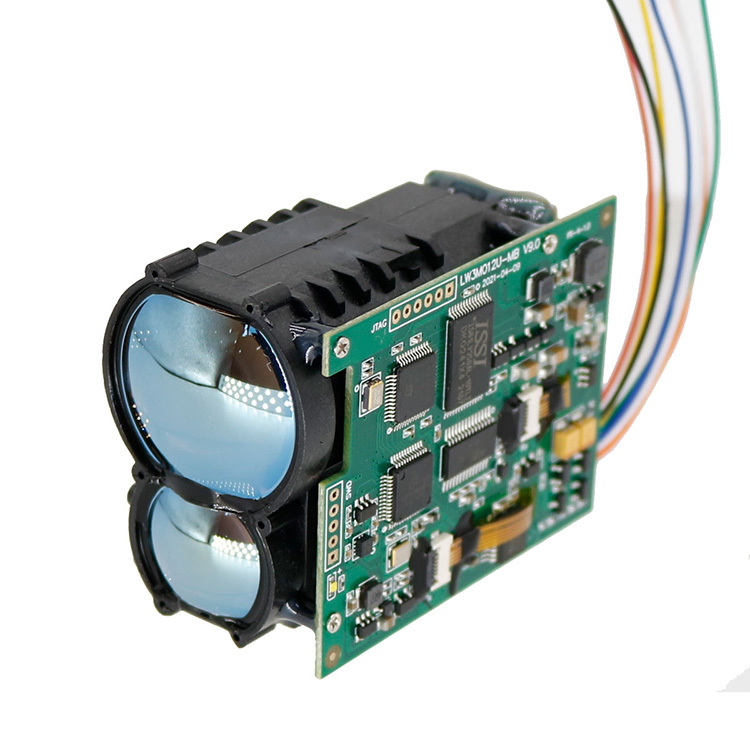

Jioptik high quality JIO-M30X 3km LRF Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
Measurement range: 5-3500 meters
Measurement of trees ≥2500 meters
Measurement of deer ≥ 1500 meters
Measurement accuracy ±1m
Weight ≤38g
| Model | JIO-M30X | |
| Laser wavelength | 905nm | |
| Ranging capability | Building | 3500m |
| Trees | 2500m | |
| Mini range | 5m | |
| Resolution | ±0.1m | |
| Operating Current | ≤180mA | |
| Standby current | ≤20mA | |
| Communication Interface | TTL / RS232 | |
| Operating Temperature | ·-20℃~+55℃ | |
| Storage Temperature | ·-30℃~+60℃ | |
| Input Voltage | 3.3-5V | |
| Beam divergence angle | 5 mard | |
| Ranging Frequency | 1Hz | |
| Power | ≤1 mW Safe for human eyes | |
| Ranging method | pulse | |
| Weight | 38g | |
| Starting instantaneous current | DC3V power supply 2A max. | |

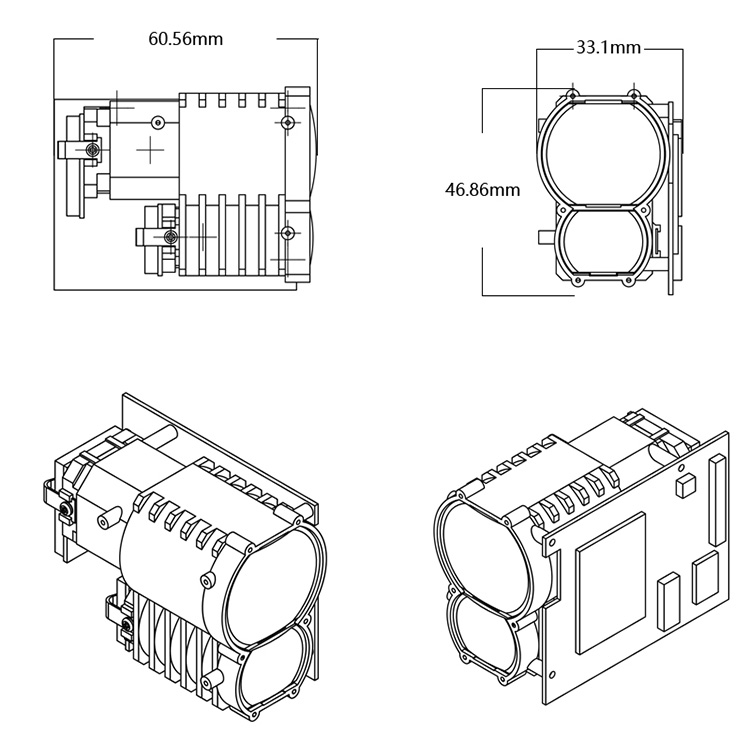

| Size | ≤62.05x37x47mm | |
| JIO-M30X/M40X module pinout is defined as shown below | ||||
|
||||
| Pin No. | Function description | |||
| 1 | RS232-Tx | |||
| 2 | RS232-Rx | |||
| 3 | Power supply：DC（3.0V - 5.0V） | |||
| 4 | TxEN: When serial port starts to send data frame, TxEN signal is high; After one frame data transmission is over,TxEN signal is low. TxEN Signal can be used to switch from emission to reception as half duplex, such as RS485. | |||
| 5 | GND | |||
| 6 | UART-RxD（TTL: Voltage is programmable：3.0V - 5.0V）； | |||
| 7 | UART-TxD（TTL: Voltage is programmable：3.0V - 5.0V)； | |||
|
Note: 1. This module has 2 communication serial output, RS232 & TTL. Each can be used by different pin outs, but can't be used at the same time. 2. UART Setting: 10 bits are transmitted or received; one start bit, 8 data bits (LSB first), one stop bit, non-parity. |
||||
| Electrical Characteristics | ||||
| Parameter | Test condition | Min | Max | Units |
| Operating voltage (Vin) | T=25°C | 2.5 | 5.0 | V |
| Working current | Standby(T=25°C, Vin=3.0V) | - | 50.0 | mA |
| Ranging(T=25°C, Vin=3.0V) | - | 150.0 | mA | |
For more information on our products, please contact Jioptik.
