Model:JIO-H0508X

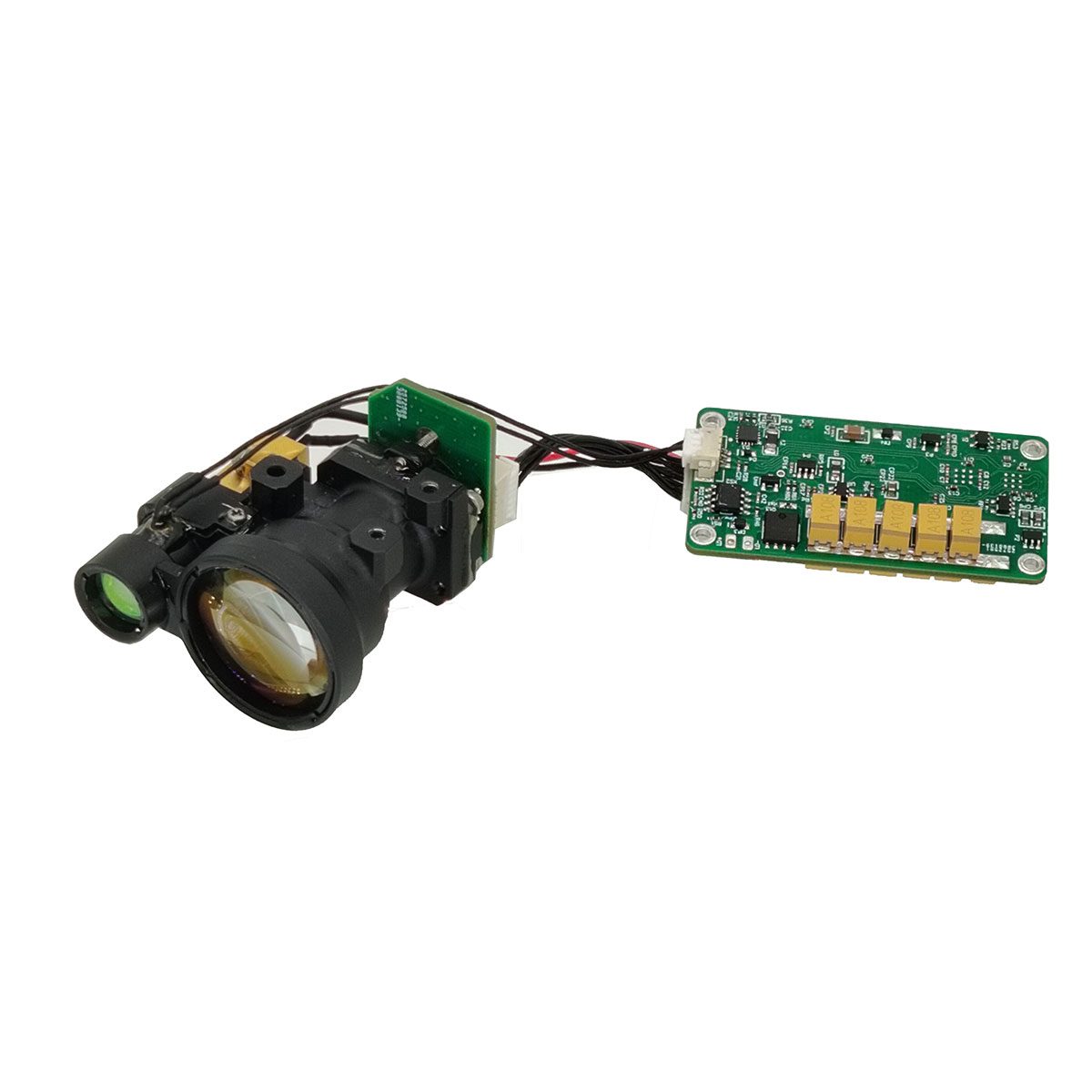

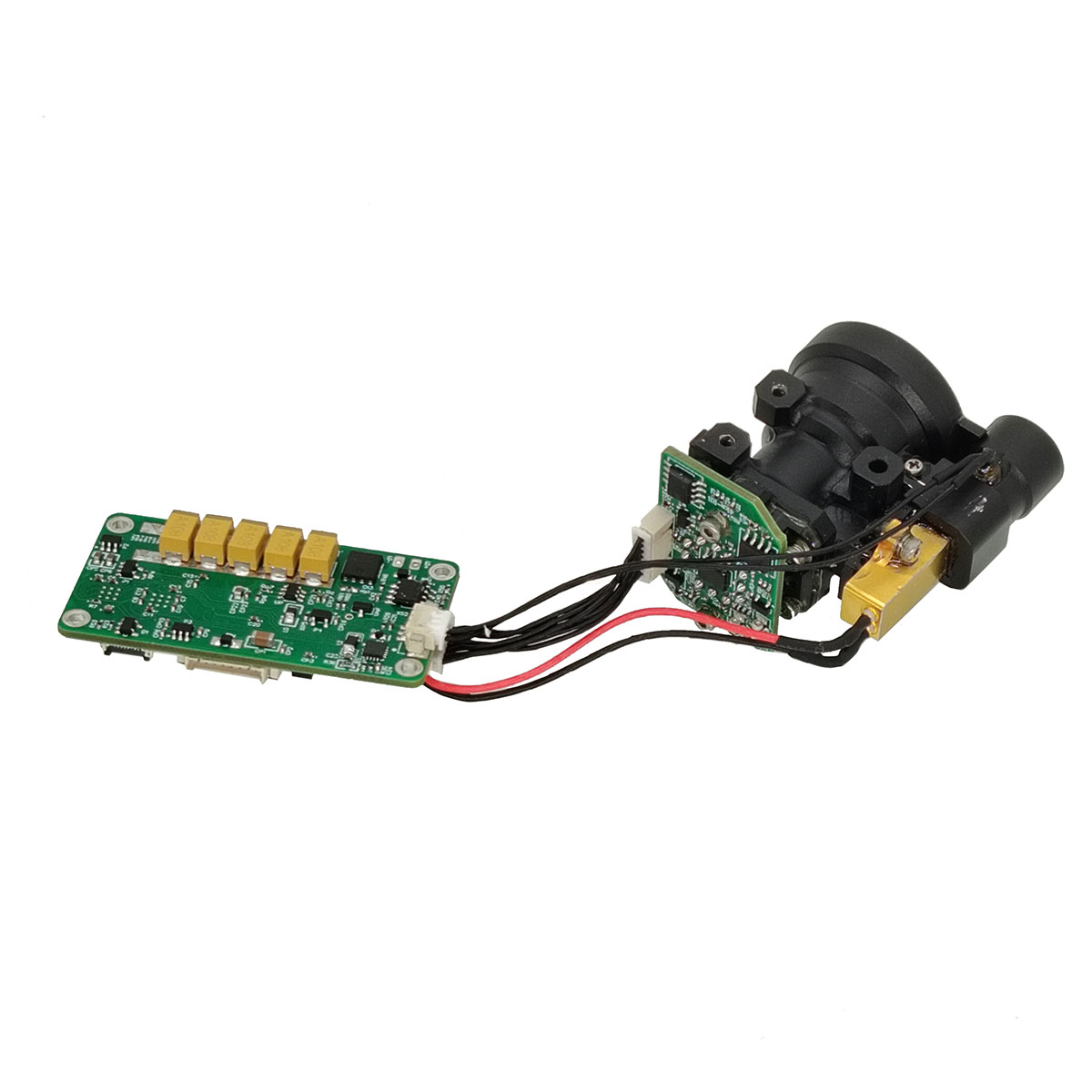

JIO-H0508X 5km Laser Rangefinder Module adopts Jioptik manufacturer's self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety.
Range performance: 5000m (2.3x2.3m NATO Targets),8000m (Maximum range)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 75g

Product Description


Product features

1. Integrated configuration design and front end face multi-point sealing installation, strong anti-imbalance ability, high durability, long working life, eye safety;

2. Using non-thermal receiving optical design technology, with good optical noise suppression ability, near distance ranging performance and high and low temperature optical performance;

3. The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.


Product performance index

Item Index
Model JIO-H0508X
Operating wavelength 1535nm ±10nm
Eye-Safe Class 1 (IEC 60825-1)
Receiving Aperture Φ25mm
Ranging range 30-8000m
Range performance 8000m Maximum range( Typical targets)
6500m Big target,Reflectivity: 60 %,observer visibility 20 km
5000m 2.3 × 2.3 m target size,Reflectivity: 30 %,observer visibility 12 km
2300m 1 × 1 m target size,Reflectivity:10 %,observer visibility 12 km
1300m UAV,Reflectivity:10 %,observer visibility 12 km
Communication Interface RS422 / TTL(Customizable)
Humidity ≤ 70%
Ranging accuracy ±1m
Accuracy rate ≥98%
Divergence angle ≤0.4mrad
Continuous ranging time ≥30min
Non-parallelism of the laser optical axis to the mounting reference <0.3mrad
Ranging frequency 1~10hz
Size ≤54mm×33.25mm×43.5mm
Voltage 9-15V
Power consumption Standby:<1.5W; Rated:<3.5W; Peak:<7W
Working temperature -40℃~+70℃
Storage temperature -50℃~+75℃
Weight ≤75g

Note: All interfaces and parameters of the laser rangefinder module can be customized.


Continuous ranging time:

Room temperature (25 ℃) environment, with a maximum frequency of 10hz continuous ranging time ≥ 1h, high temperature (70 ℃) environment, with a maximum frequency of 10hz continuous ranging time ≥ 30min;

(f) Command response time: ≤15ms;

(g) Power-on start-up time: ≤ 10ms


Applications for STA-H0508X 5km Laser Rangefinder Module

Thermal imaging, night vision and other handheld mobile devices

Border observation and surveillance systems

Sensor kits for UAV pods and UGVs


Structure installation interface

5km Laser Rangefinder Module


Electrical Interface

a) Communication interface: LRS422 communication; baud rate: 115200;

b) The laser rangefinder module externally adopts Changjiang connector (Model: A1251H-8P) to connect with other control units, the pin definition is shown in the following table.


Pin definitions

Pin Pin Definition Electrical Characteristics Definition Remarks
P-1 RS422_TX+ Signal output port From rangefinder to host computer
P-2 RS422_TX-
P-3 RS422_RX- Signal Input Port From host computer to rangefinder
P-4 RS422_RX+
P-5 RS422_GND Signal ground
P-6 +12V Rangefinder power supply Rangefinder Power Supply
P-7 GND
P-8 NC


Position of pin 1 of connector

5km Laser Rangefinder Module


Center of gravity

5km Laser Rangefinder Module
