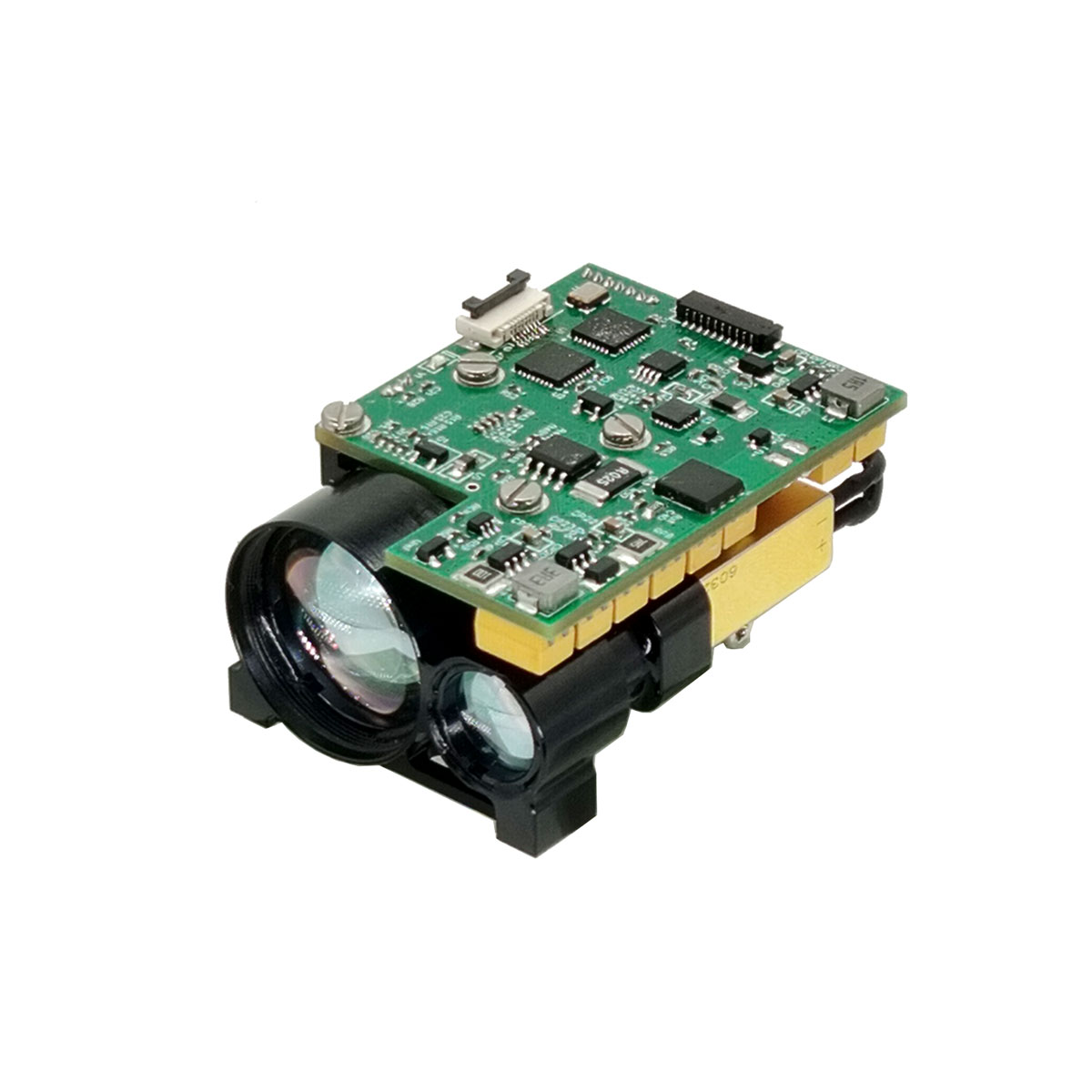

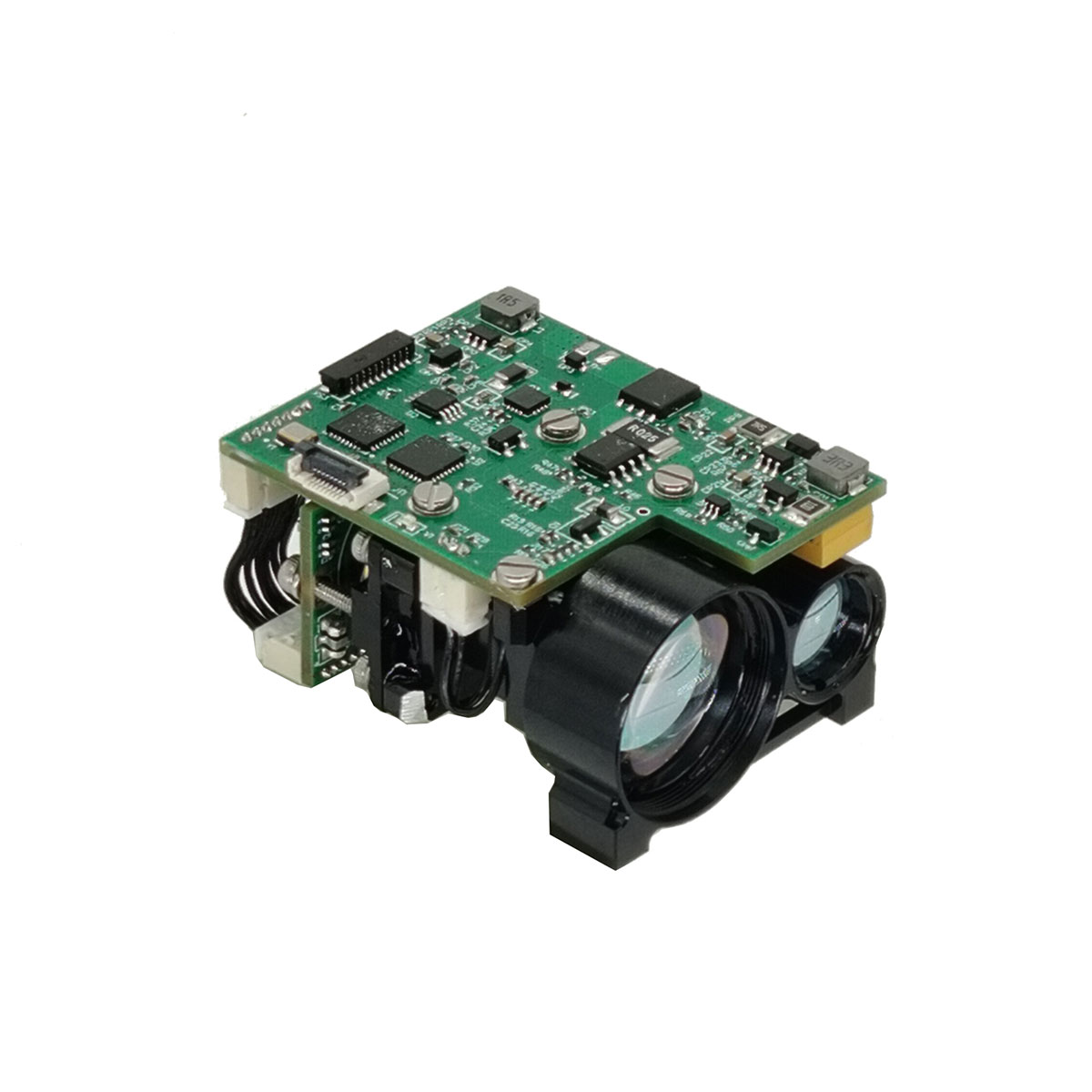

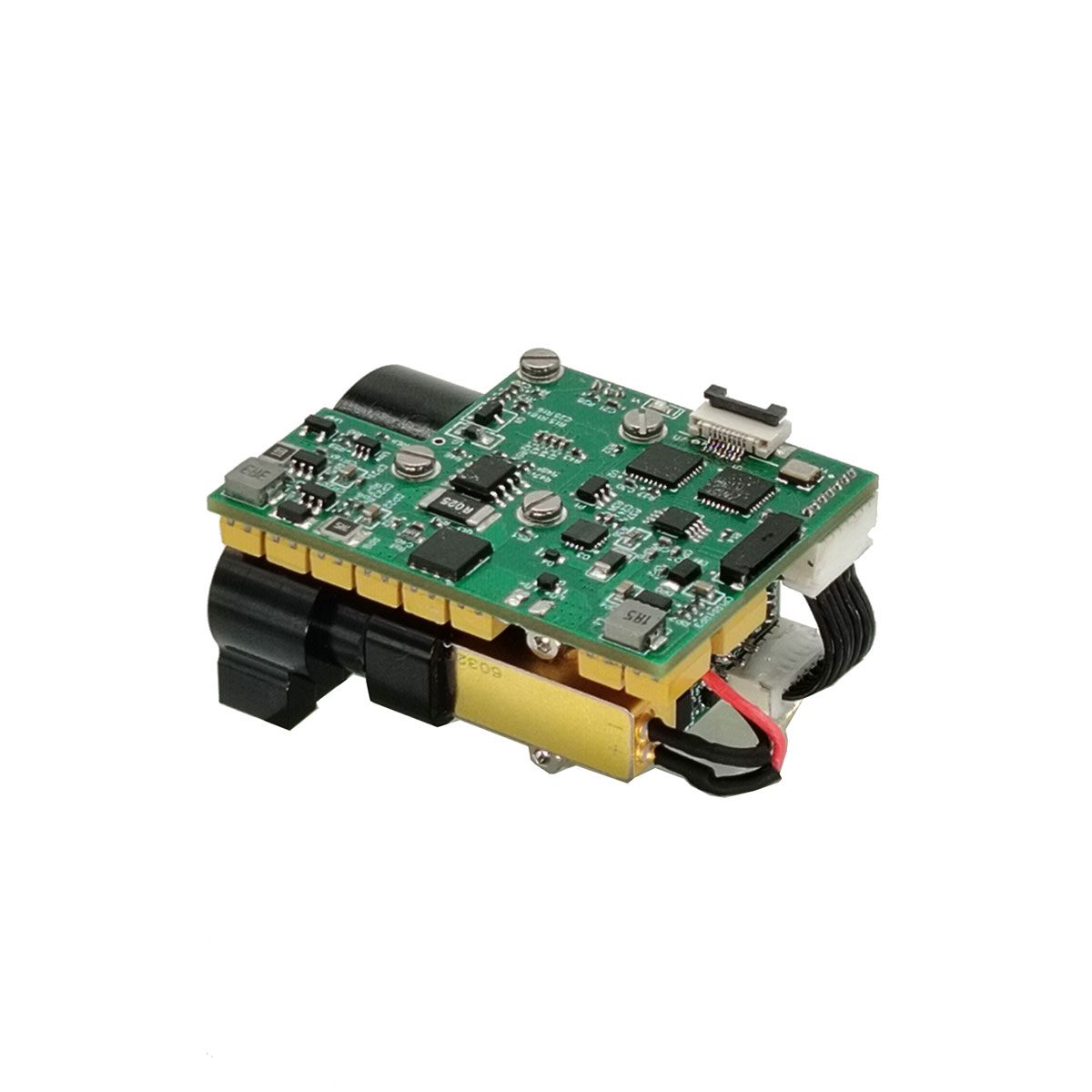

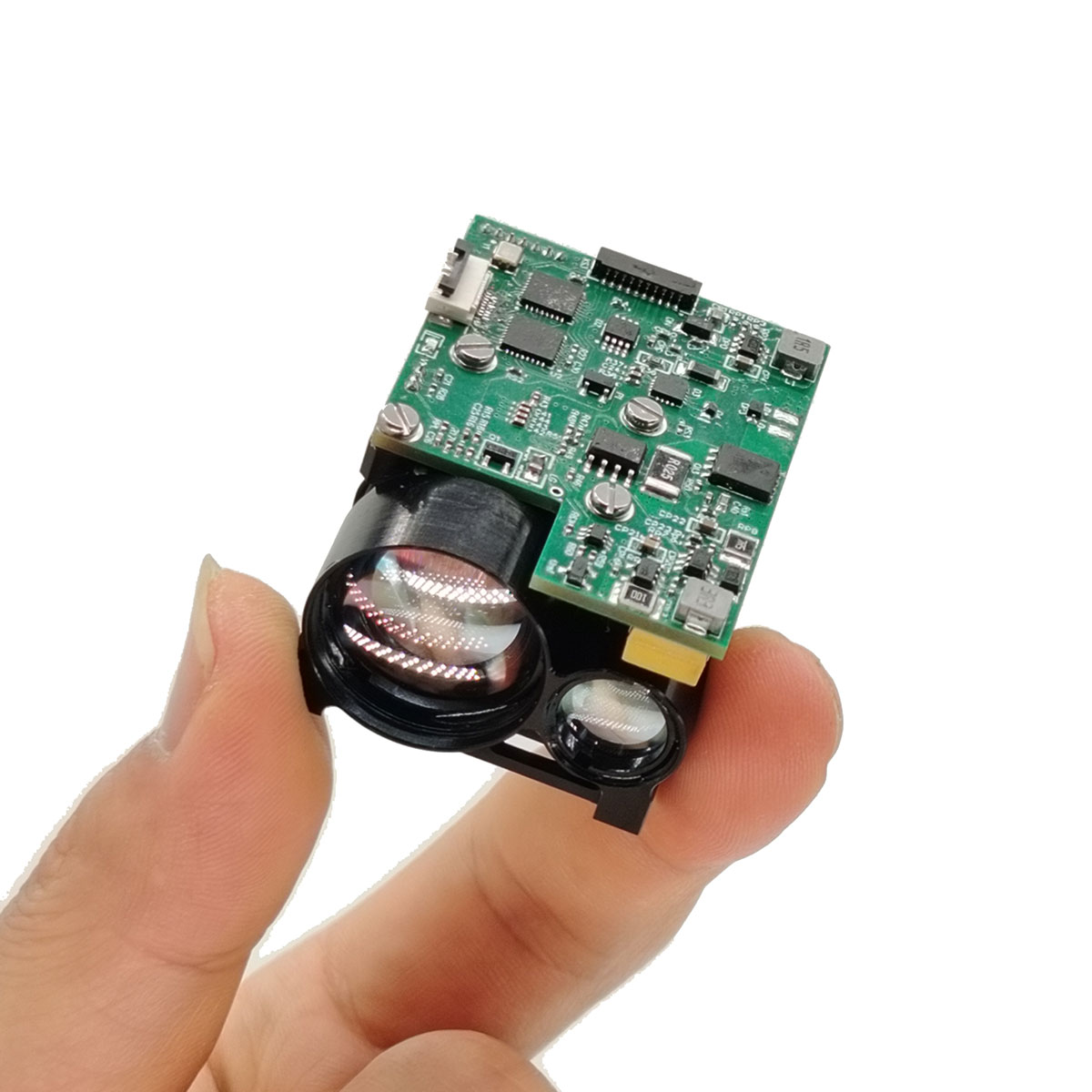

JIO-H0407X 4km Laser Rangefinder Module adopts Jioptik supplier's self-developed 1535nm erbium glass laser module, which has the features of long distance measurement, low power consumption, small size and safety for human eyes.
Range performance: 4000m (2.3x2.3m NATO target),7000m (Maximum range)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 57g
1. Integrated configuration design and front end face multi-point sealing installation, strong anti-imbalance ability, high durability, long working life, eye safety;
2. Using non-thermal receiving optical design technology, with good optical noise suppression ability, near distance ranging performance and high and low temperature optical performance;
3. The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.
| Item | Index | |
| Model | JIO-H0407X | |
| Operating wavelength | 1535nm ±10nm | |
| Eye-Safe | Class 1 (IEC 60825-1) | |
| Receiving Aperture | φ19mm | |
| Ranging range | 30-7000m | |
| Range performance | 7000m | Maximum range |
| ≥5500m | Big target, Reflectivity: 60 %, observer visibility 12 km | |
| ≥4000m | 2.3×2.3m NATO target, Reflectivity: 30 %, observer visibility 8 km | |
| ≥2300m | 0.5×1.7m Person, Reflectivity: 10 %, observer visibility 8 km | |
| ≥1100m | 0.2x0.3m UAV, Reflectivity: 10 %, observer visibility 8 km | |
| Communication Interface | RS422 | |
| Humidity | ≤ 60% | |
| Ranging accuracy | ±1m | |
| Accuracy rate | ≥98% | |
| Divergence angle | ≤0.5mrad | |
| Ranging frequency | 1~10hz | |
| Continuous ranging time | ≥30min | |
| Non-parallelism of the laser optical axis to the mounting reference | <0.3mrad | |
| Size | ≤48.5×36×26mm | |
| Voltage | 5V | |
| Power consumption |
Standby power consumption ≤1W. Rated power consumption ≤1.6W. Peak power consumption ≤4W |
|
| Working temperature | -40℃~+70℃ | |
| Storage temperature | -50℃~+75℃ | |
| Weight | ≤57g | |
| Shock | 1800g,6ms | |
Note: All interfaces and parameters of the laser rangefinder module can be customized.
Thermal imaging, night vision and other handheld mobile devices
Border observation and surveillance systems
Sensor kits for UAV pods and UGVs
a) Single maximum continuous ranging time: ≥35min;
b) The maximum interval time for continuous distance measurement again: ≤15s.
Laser optical axis stability ≤ 0.1mrad (full temperature range);
Non-parallelism of the laser optical axis to the installation reference ≤0.25mrad;
Communication interface RS422/TTL communication;
Baud rate: 115200;
Data bits: 8;
Start bit: 1;
Stop bit: 1;
Parity bit: none;
b) External Connector;
The upper computer side realizes the cross-link test with the DF52-10S-0.8 connector on the rangefinder side through the DF52-10P-0.8C connector.
Table 1 Pin definitions
| Pin | Grade | Electrical Characteristics Definition | Remarks |
| P- 1 | VIN+ | Input Power Positive | Power supply |
| P-2 | VTN+ | ||
| P-3 | COM | Input Power Negative | |
| P-4 | COM | ||
| P-5 | RS422_TXD+ | Signal output port | From rangefinder to host computer |
| P-6 | RS422_TXD- | ||
| P-7 | RS422_RXD- | Signal input port | From host computer to rangefinder |
| P-8 | RS422_RXD+ | ||
| P-9 | SWDIO | Communication ground | |
| P-10 | SWCLK | Clock port |
For more information on our products, please contact Jioptik.
