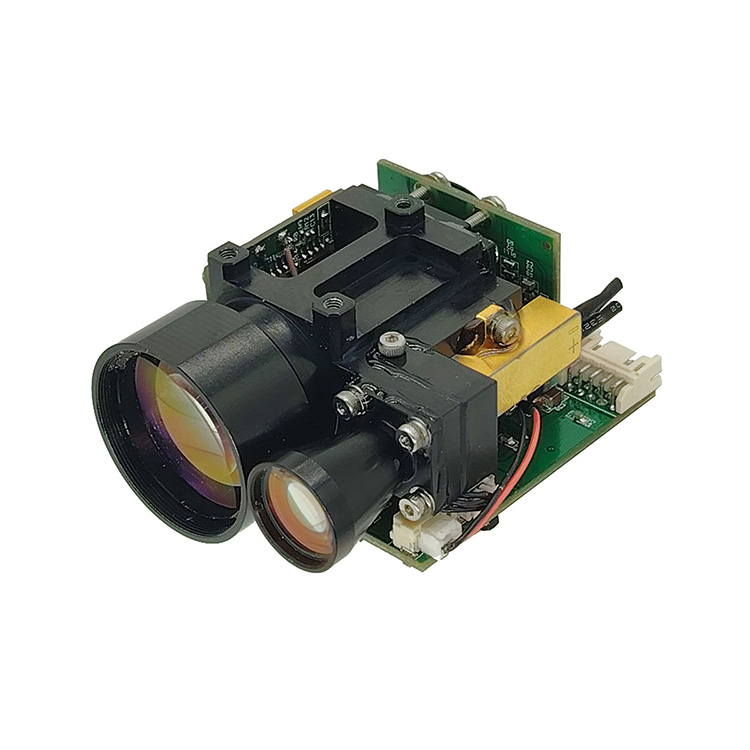

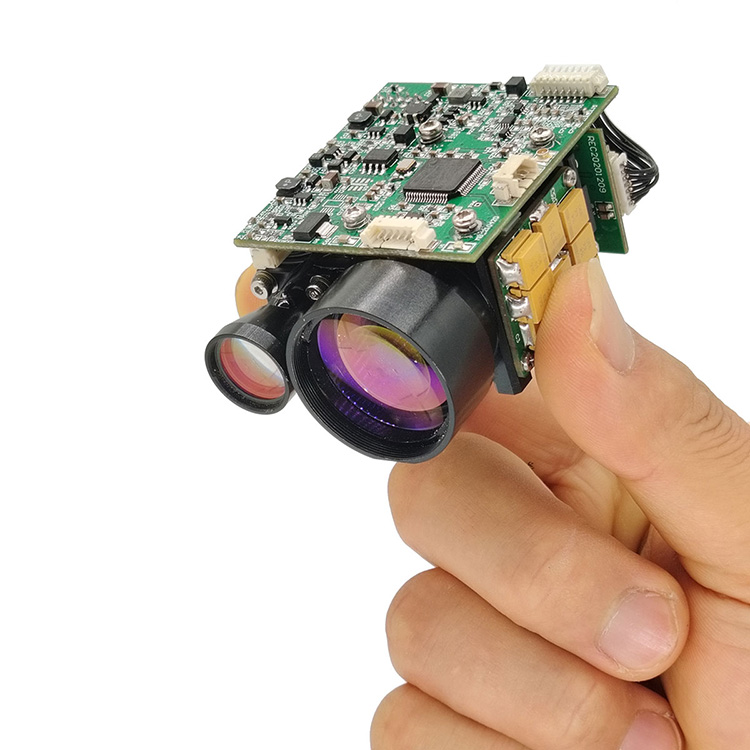

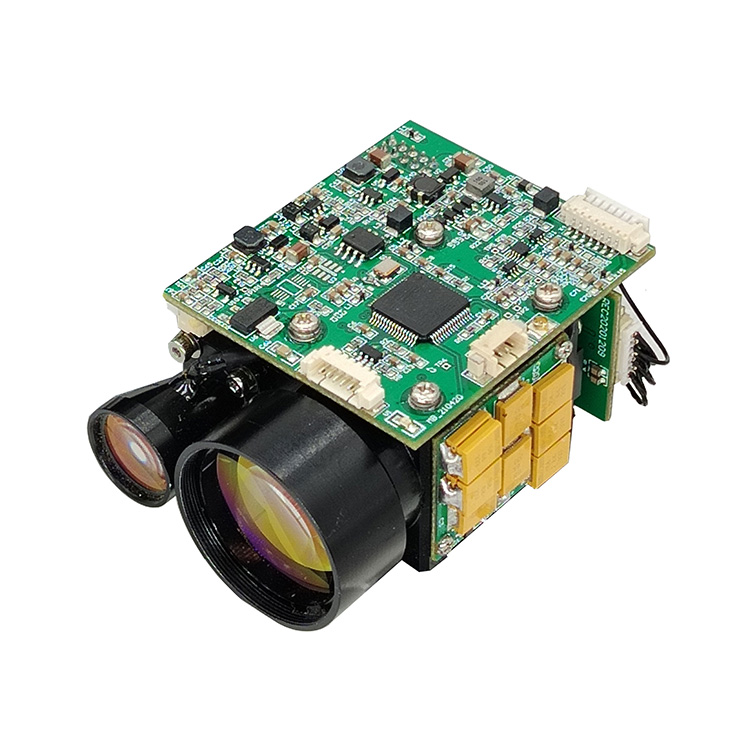

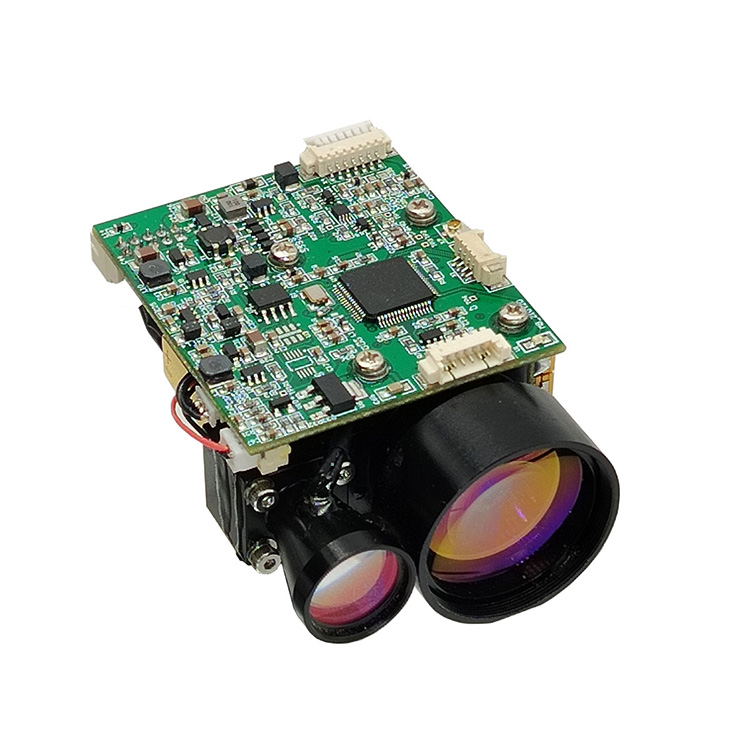

6km Laser Rangefinder Module
6km Laser Rangefinder Module
6km Laser Rangefinder Module
6km Laser Rangefinder Module
6km Laser Rangefinder Module
6km Laser Rangefinder Module
6km Laser Rangefinder Module
6km Laser Rangefinder Module

6km Laser Rangefinder Module

Model:JIO-H0610X

JIO-H0610X 6km Laser Rangefinder Module adopts Jioptik factory's self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety.
Ranging performance: 6000m (2.3x2.3m NATO Targets) 10000 m (Large target)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 100g

Product Description


Product features

1. Integrated configuration design and front end face multi-point sealing installation, strong anti-imbalance ability, high durability, long working life, eye safety;

2. 6km Laser Rangefinder Modules use non-thermal receiving optical design technology, with good optical noise suppression ability, near distance ranging performance and high and low temperature optical performance;

3. The internal interface of the circuit adopts the welding wire direct connection process, which is firm and reliable, which can avoid the short circuit or poor contact caused by the loosening, oxidation and water vapor of the connector, and improve the reliability and life of the product.


Product performance index

Item Index
Model JIO-H0610X
Operating wavelength 1535nm ±10nm
Eye-Safe Class 1 (IEC 60825-1)
Receiving Aperture Φ25mm
Ranging range 30-10000m
Ranging capability 10000m Max Ranging(Typical Large targets)
8000m Large target, Reflectivity: 60 %,visibility ≥ 25km
6000m Visibility ≥ 25km, target with 0.3 reflectivity for 2.3m × 2.3m target
3000m 1 × 1 m target,Reflectivity: 10 %,Visibility ≥ 25km
Communication Interface RS422
Humidity <80%
Ranging accuracy ±1m
Accuracy rate ≥98%
Divergence angle ≤0.5mrad
Ranging frequency 1~10hz
Continuous ranging time ≥30min
Non-parallelism of the laser optical axis to the mounting reference <0.3mrad
Size ≤70mm×48mm×32mm
Voltage 9-15V
Power consumption Standby:<1.5W; Rated:<4W; Peak:<7W
Working temperature -40℃~+60℃
Storage temperature -45℃~+70℃
Weight ≤100g


Function:

1: With single ranging and continuous ranging function;

2: laser out of the number of times the report function

3: With multi-target ranging function;


Structure installation interface

6km Laser Rangefinder Module


Electrical Interface

a) Communication interface: UART_TTL, RS422, RS232, one of the three options, see Annex 1 for protocol details;

b) Use PHD-2×5 connector, the interface definition is shown in the table.


Table 3 Electrical Interface Definition

Pin Pin Definition Electrical Characteristics Definition Remarks
P-1 RS422_TX+ Signal output port From rangefinder to host computer
P-2 RS422_TX-
P-3 RS422_RX- Signal Input Port From host computer to rangefinder
P-4 RS422_RX+
P-5 RS422_GND Signal ground
P-6 +12V Rangefinder power supply Rangefinder Power Supply
P-7 GND
P-8 NC


Position of pin 1 of connector

6km Laser Rangefinder Module
