Jioptik F623 F623 Optical Fiber Inertial Integrated Navigation System adopts a strapdown technology solution and advanced data fusion algorithms to provide high-precision and high stability attitude, position, velocity and other information.
● Positioning accuracy(CEP)
● Pure inertia:≤6nm/h
● Course accuracy(RMS)
● Pure inertia:0.5°secL
● Attitude accuracy (RMS)
● Pure inertia:0.3°
● Speed accuracy (RMS)
● Pure inertia:1.5m/s
Jioptik supplier's STA-F98 single axis fiber optic gyroscope is an all solid state, high-precision inertial sensor device that integrates optics, mechanics, and electronics. F98 Single Axis Fiber Optic Gyro FOG is an ideal inertial device to replace traditional mechanical gyroscopes. The product has the characteristics of small size, light weight, large range, and fast data update.
● Zero-bias stability:<0.02°/h
● Measurement range:±300°/s
● Random walk coefficient:<0.002°/ √h
● Bandwidth:>200Hz
China Jioptik STA-F70 single axis fiber optic gyroscope is an all solid state, medium precision inertial sensor device that integrates optics, mechanics, and electronics. It is an ideal inertial device to replace traditional mechanical gyroscopes. The F70 Single Axis Fiber Optic Gyro FOG has the characteristics of small size, light weight, large range, and fast data update.
● Zero-bias stability:<0.05°/h
● Measurement range:±500°/s
● Random walk coefficient:<0.005°/ √h
● Bandwidth:>200Hz
Jioptik STA-F50B Single Axis Fiber Optic Gyro FOG is a standardized closed-loop fiber optic gyroscope that features small size, light weight, large range, and fast data updates.
● Zero-bias stability:<0.2°/h
● Measurement range:±600°/s
● Random walk coefficient:<0.02°/ √h
● Bandwidth:>200Hz
As the professional manufacturer, Jioptik would like to provide you F50A Single Axis Fiber Optic Gyro FOG. STA-F50A single axis fiber optic gyroscope is a standardized closed-loop fiber optic gyroscope that features small size, light weight, large range, and fast data updates.
● Zero-bias stability:<0.5/h
● Measurement range:±800°/s
● Random walk coefficient:<0.05°/ √h
● Bandwidth:>200Hz
As a professional high quality 50 Series Single Axis Fiber Optic Gyro FOG manufacturer, you can rest assured to buy Single Axis Fiber Optic Gyro from our factory. 50 series single axis fiber optic gyroscope is a standardized closed-loop fiber optic gyroscope that features small size, light weight, large range, and fast data updates.
● Zero-bias stability:<0.5°-0.2°/h
● Measurement range:±800°-600°/s
● Random walk coefficient:<0.05°-0.02°/ √h
● Bandwidth:>200Hz
Jioptik STA-H509 3-Axis Fiber Optic Inertial Measurement Unit IMU is designed for low to medium precision applications, using an integrated optical path and circuit package. It has the characteristics of small size, light weight, and low power consumption.
● FOG performance index
● Zero-bias stability:<0.3°/h(1σ)
● Zero-bias repeatability:<0.3°/h(1σ)
● Acceleromete performance index
● Partial value stability:<0.2mg(1σ)
● Partial value repeatability:<0.5mg
Jioptik STA-H688 High-precision Inertial Measurement Unit IMU is a inertial measuring unit with small size and strong overload resistance. It can be used for the precise navigation, control, and dynamic measurement of the carrier. The product uses high-precision MEMS inertial device, has high reliability and high hardness, and has the ability to accurately measure the angular speed and acceleration information of the mobile carrier in harsh environment.
View More

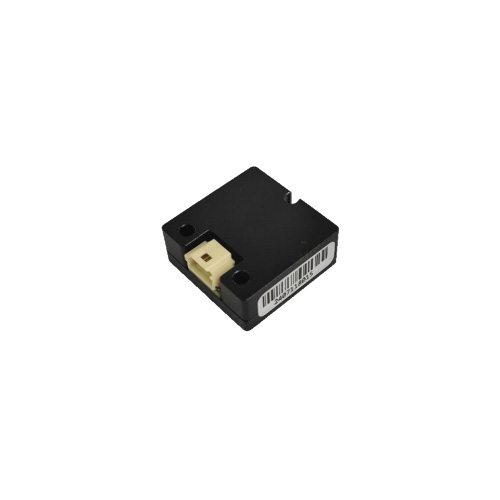

STA-H313 High performance Inertial Measurement Unit is a durable industrial inertial navigation system with 6-axis output, acceleration, angular velocity output frequency 200HZ.STA-H313 uses MEMS based accelerometer and gyroscope to provide customers with super cost-effective solutions.You can rest assured to buy H313 High-precision Inertial Measurement Unit IMU from our factory.
View More
For more information on our products, please contact Jioptik.
