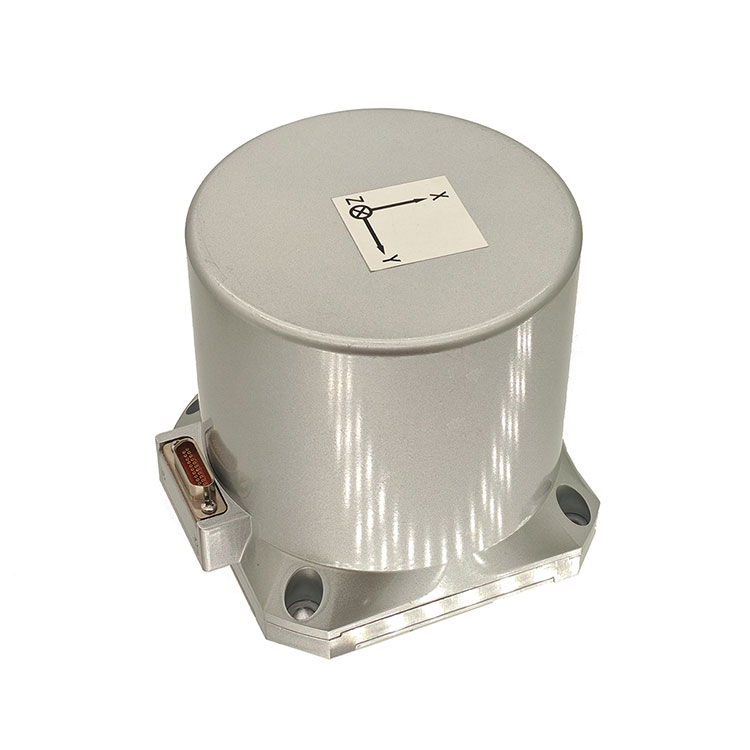

Jioptik STA-H509 3-Axis Fiber Optic Inertial Measurement Unit IMU is designed for low to medium precision applications, using an integrated optical path and circuit package. It has the characteristics of small size, light weight, and low power consumption.
● FOG performance index
● Zero-bias stability:<0.3°/h(1σ)
● Zero-bias repeatability:<0.3°/h(1σ)
● Acceleromete performance index
● Partial value stability:<0.2mg(1σ)
● Partial value repeatability:<0.5mg
The STA-509 3-Axis Fiber Optic Inertial Measurement Unit IMU is designed with 3-axis common technology, which is low cost and stable performance for the needs of low and medium precision application background. The structure adopts an optical path and a circuit integrated package, which has a simple structure and is convenient to install.The product has the characteristics of small size, light weight, low power consumption, high reliability and strong environmental adaptability.
Suitable for aviation, ground vehicles, surface and underwater navigation, attitude control and other fields.
| Features | Index |
| Model | STA-H509-IMU |
| FOG performance index | |
| Scale factor nonlinearity | <100 ppm |
| Scale factor repeatability | <100 ppm(1σ) |
| Zero-bias stability | <0.3°/h(1σ) |
| Zero-bias repeatability | <0.3°/h(1σ) |
| Dynamic range | ≥±400°/s |
| Bandwidth | ≥200Hz |
| Resolution ratio | <0.1/h |
| Random walk coefficient | <0.01°/ √h |
| Acceleromete performance index | |
| Partial value stability | <0.2mg(1σ) |
| Partial value repeatability | <0.5mg |
| Scale factor nonlinearity | <100 ppm |
| Input Range | ≥±45g |
| System Index | |
| Operating temperature range | -40℃~+70℃ |
| Storage temperature range | -55℃~+75℃ |
| Turn-on time | <5s |
| Power consumption in steady state | <15W |
Note: All performance indicators and interfaces of fiber optic gyroscope can be customized according to needs.
For more information on our products, please contact Jioptik.
