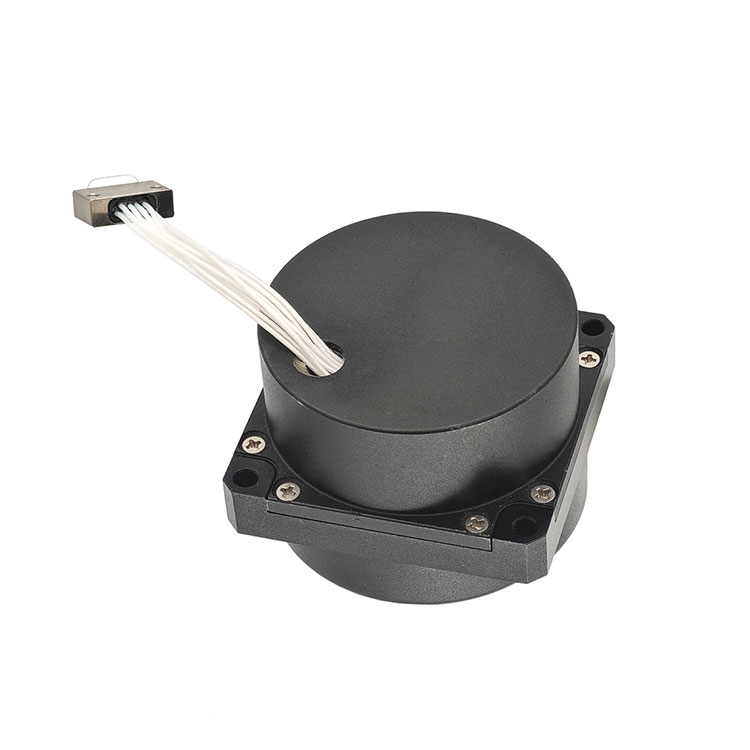

F50A Single Axis Fiber Optic Gyro FOG
F50A Single Axis Fiber Optic Gyro FOG

F50A Single Axis Fiber Optic Gyro FOG

Model:STA-F50A

As the professional manufacturer, Jioptik would like to provide you F50A Single Axis Fiber Optic Gyro FOG. STA-F50A single axis fiber optic gyroscope is a standardized closed-loop fiber optic gyroscope that features small size, light weight, large range, and fast data updates.
● Zero-bias stability:<0.5/h
● Measurement range:±800°/s
● Random walk coefficient:<0.05°/ √h
● Bandwidth:>200Hz

Product Description


The F50A Single Axis Fiber Optic Gyro FOG is a standardized low-precision closed-loop fiber optic gyroscope used to measure the angular velocity of the carrier along the product's sensitive axis. The product has the characteristics of small size, light weight, large range, fast data update and so on.

Mainly suitable for applications such as medium precision inertial navigation systems, positioning and orientation systems, servo stabilization systems, etc.


Main product parameters

Features STA-F50A
Zero-bias stability <0.5°/h
Scale factor nonlinearity <100ppm
Measurement range ±800°/s
Random walk coefficient <0.05°/ √h
Bandwidth >200Hz
Turn-on time <3s
Input Voltage +5V
Operating temperature rage -40~+60℃
External dimension φ50×37.5mm
Weight <140g

Note: All performance indicators and interfaces of fiber optic gyroscope can be customized according to needs.


Model 50 Single axis Fiber optic Gyroscope (FOG) product dimensions

F50a Single Axis Fiber Optic Gyro Fog
