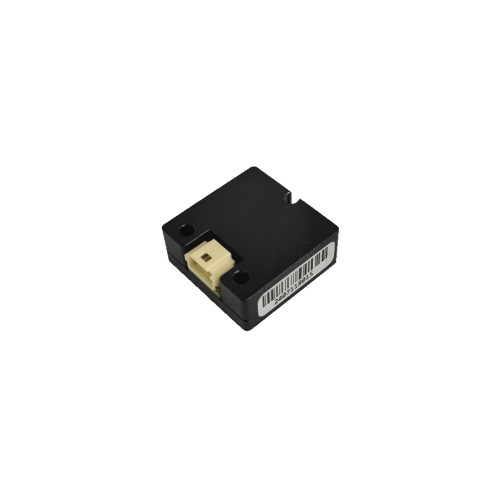

STA-H313 High performance Inertial Measurement Unit is a durable industrial inertial navigation system with 6-axis output, acceleration, angular velocity output frequency 200HZ.STA-H313 uses MEMS based accelerometer and gyroscope to provide customers with super cost-effective solutions.You can rest assured to buy H313 High-precision Inertial Measurement Unit IMU from our factory.
STA-H313 High-precision Inertial Measurement Unit IMU is small size, light weight, super durable, compact aluminum alloy shell, has high reliability in harsh environment, has been widely used in unmanned aircraft and ROVs, unmanned aircraft, intelligent agriculture, mechanical control dynamic control system and attitude system, platform stability, AGV, robot and other fields.
Precision-calibrated 6-axis inertial system
3-axis gyroscope and 3-axis accelerometer output
Data output rate: 200Hz
Range: gyroscope ± 500 ° / s, accelerometer ± 16g
Zero bias instability: gyroscope 2° / h, accelerometer 0.1mg
Small size: 22.4 * 22.4*9.0mm)
Light weight: <10g
Wide temperature range: -40 C~ + 85 C
High reliability of product design, scientific and effective product research and development.
Professional and perfect production equipment, strict quality control of the production process.
Deliver better products to your users.
Years of industry deep application experience, super thousand industry users practical cases.
Industry-leading compensation calibration technology, efficient and rapid professional technical response.
Provide more satisfactory service for users.
| Index item | metric | remarks | |
| Gyro | Acc | ||
 IMU accuracy
|
|||
| Range: X, Y, and Z | ±500°/s | ±16g | |
| Zero-bias instability | 2°/h | 100 ug | Allan |
| Random walk | 0.15°/√ h | 0.025m/s/√ h | |
| Acetal zero partial stability | 10°/h | 0.5 mg | 10-s average (25℃, room temperature) |
| Full-temperature and zero-bias stability | 10°/h | 0.5 mg | 10s average (-40℃ \ + 85℃) |
| The scale factor is of nonlinearity | 100 ppm | 100 ppm | ±1g |
| Cross coupling | 100 ppm | 100 ppm | |
| Tape width | 200 Hz | ||
| Refresh rate | 200 Hz | Maximum of 1000 Hz | |
 Electrical characteristics
|
|||
| Working voltage | 5 VDC | ||
| Power dissipation | 0.5 W | ||
| Joggle | LVTTL | 115200~ 921600bps is configurable | |
 design feature
|
|||
| size | 22.4 *22.4*9 mm | ||
| Weight | <10g | ||
 Environmental reliability
|
|||
| Working temperature | -40°C~+80°C | ||
| Vacation storage temperature | -40°C~+85°C | ||
| Random vibration | 6.06g （20-2000 Hz） | ||
| impact | 1000g / 0.5 ms | ||
For more information on our products, please contact Jioptik.
