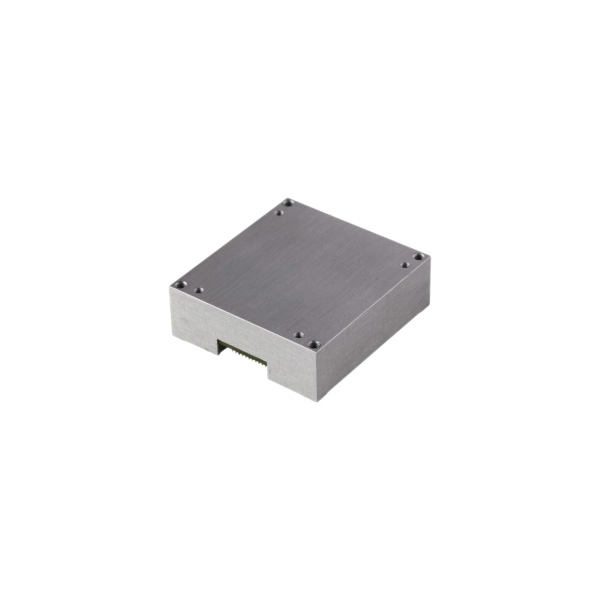

Jioptik STA-H688 High-precision Inertial Measurement Unit IMU is a inertial measuring unit with small size and strong overload resistance. It can be used for the precise navigation, control, and dynamic measurement of the carrier. The product uses high-precision MEMS inertial device, has high reliability and high hardness, and has the ability to accurately measure the angular speed and acceleration information of the mobile carrier in harsh environment.
Jioptik STA-H688 High-precision Inertial Measurement Unit IMU has a three-axis gyroscope and a triaxial accelerometer to measure the triaxial angular rate and triaxial acceleration of the carrier. After error compensation (including temperature compensation, installation dislocation angle compensation,Nonlinear compensation, etc.) of the gyroscope and accelerometer data are output through the serial port according to the agreed communication protocol.
High-precision MEMS is equipped with a 3-axis accelerometer, and a 3-axis gyroscope Optional ten-axis hardware: Add a 3-axis Magnetometer and digital barometer
Range: plus ± 20g, gyroscope ± 450° / s
Communication interface: SPI
High output frequency: 2,000 Hz
Wide temperature range: -40℃ ~ + 85 C Small size: 44 * 47 * 14mm
High reliability of product design, scientific and effective product research and development.
Professional and perfect production equipment, strict quality control of the production process. Deliver better products to your users.
Years of industry deep application experience, super thousand industry users practical cases.
Industry-leading compensation calibration technology, efficient and rapid professional technical response.
Provide more satisfactory service for users.
| Index item | metric | remarks | |
| Gyro | Acc | ||
 IMU accuracy
|
|||
| Range: X, Y, and Z | ±450°/s | ±20g | |
| Zero-bias instability | 1.2°/h | 20μg | Allan variance |
| • random walk | 0.17°/√ h | 0.033m/s/√ h | |
| Acetal zero partial stability | 4°/h | 0.5 mg | 10-s average (25℃ room temperature) |
| Full-temperature and zero-bias stability | 10°/h | 1mg | 10s average (-40° C \ + 75°C) |
| The scale factor is of nonlinearity | 100 ppm | 100 ppm | The Acc range is ± 1 g |
| • cross coupling | 200 ppm | 200 ppm | |
| • resolution ratio | 0.007°/s | 0.02 mg | |
| • tape width | 480 Hz | 500 Hz | |
| • refresh rate | 2000 Hz | ||
|
magnetometer
|
|||
| • measuring range | ±8 Gauss | ||
| • resolution ratio | 0.2 mG | ||
| • noise density | 50μG | ||
|
barometer
|
|||
| • measuring range | 300 mbar~ 1100 mbar | ||
| • common difference | 4.5 mbar | ||
|
Electrical characteristics
|
|||
| • working voltage | 3.3 VDC | ||
| • power dissipation | 1W | ||
| • joggle | SPI | 115200~ 921600 bps is configurable | |
|
design feature
|
|||
| • size | 44 *47* 14 mm | ||
| • weight | 40g | ||
|
Environmental reliability
|
|||
| • working temperature | -40°C~+85°C | ||
| Vacation storage temperature | -55°C~+105°C | ||
| • random vibration | 6.06g （20-2000 Hz） | ||
| • impact | 1500g / 0.5 ms | ||
For more information on our products, please contact Jioptik.
