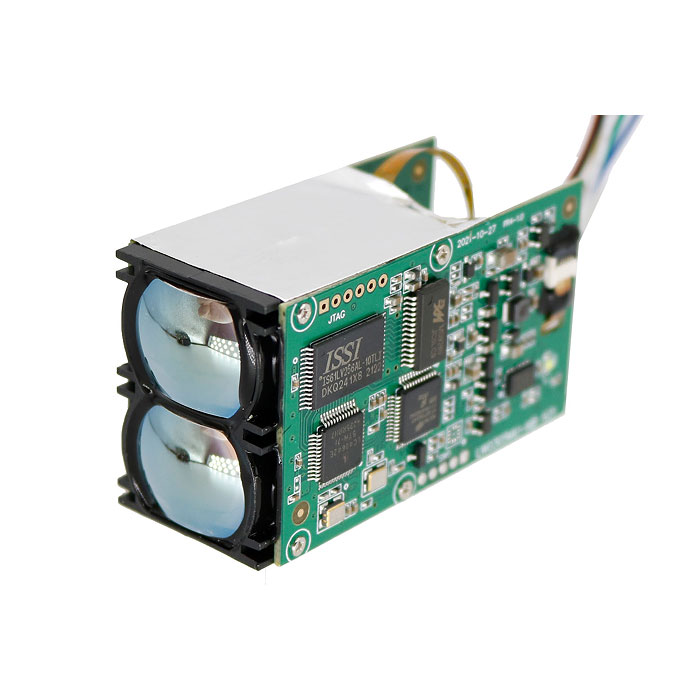

China Jioptik JIO-M18X 2.3km Laser Rangefinder Module adopts 905nm semiconductor laser components, with low power consumption, small size, stable performance and other characteristics, suitable for thermal imaging, night vision and other handheld mobile devices and miniaturized UAV pod equipment integration.
Measurement range: 5-2300 meters
Measurement of trees ≥2000 meters
Measurement of deer ≥1200 meters
Measurement accuracy ±1m
Weight ≤32g
| Model | JIO-M18X | |
| Laser wavelength | 905nm | |
| Ranging capability | Building | 2300m |
| Trees | 2000m | |
| Mini range | 5m | |
| Resolution | ±0.1m | |
| Operating Current | ≤180mA | |
| Standby current | ≤15mA | |
| Communication Interface | TTL | |
| Operating Temperature | ·-20℃~+55℃ | |
| Storage Temperature | ·-30℃~+60℃ | |
| Input Voltage | 3.3-5V | |
| Beam divergence angle | 5 mard | |
| Ranging Frequency | 1Hz | |
| Power | ≤1 mW Safe for human eyes | |
| Ranging method | pulse | |
| Weight | 32g | |
| Starting instantaneous current | DC3V power supply 2A max. | |
| Size | 58.62x32.2x32.2mm | |
For more information on our products, please contact Jioptik.
