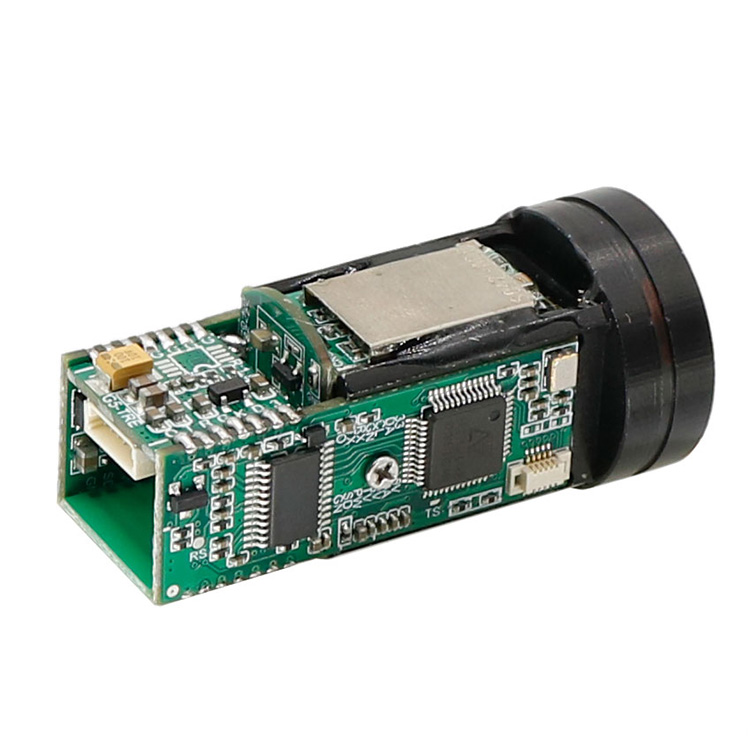

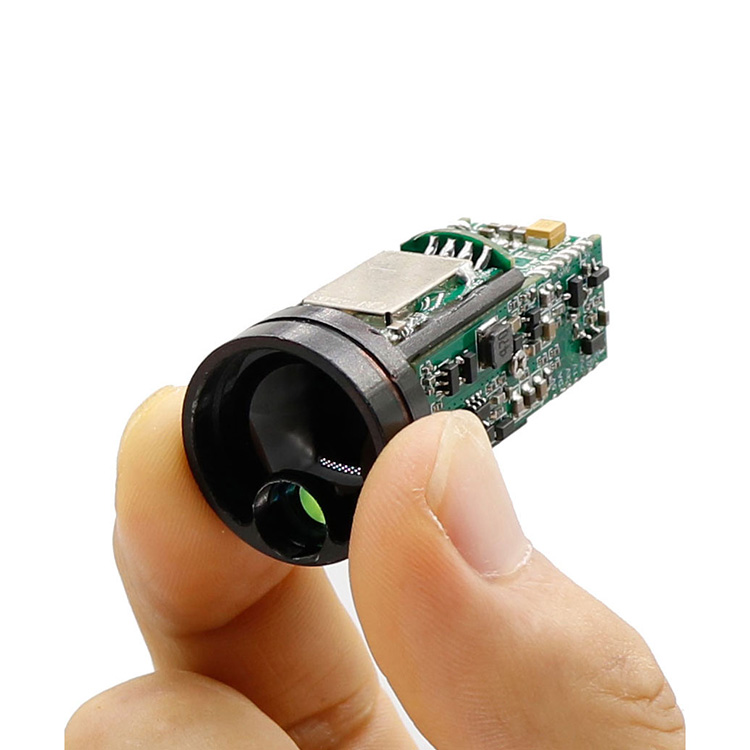

The JIO-W012X 1.2km LRF Module is a new lightweight and compact ranging module, working at 905nm wavelength. Using UART-TTL interface, equipped with test software, convenient for further development, with the characteristics of small size, light weight and reliable performance. Suitable for thermal imaging, UAV pod, night vision instrument and other equipment integration.
Measurement range: 5-1200 /1500meters
Measurement of trees ≥800 meters
Measurement of deer ≥ 500 meters
Measurement accuracy ±1m
Weight ≤20g
| project | technical parameter |
| laser wave length | 905nm |
| Range range | 5m-1200m/1500m |
| ranging accuracy | ±0.5m |
| Distance measurement frequency | 1Hz |
| Quadrant measurement rate | ≥98% |
| false alarm rate | ≤1% |
| angle of divergence | ≤6mrad |
| Receive caliber | 18mm |
| communication interface | UART-TTL |
| supply voltage | 3.3-5V |
| Work power consumption | 1W |
| Standby power consumption | ≤500mW |
| size | Ф23mm 48mm |
| weight | ≤20g |
| operating temperature range | -15℃ -+60℃ |
| Storage temperature range | -55℃ -+70℃ |
| pin | definition | explain |
| 1 | GND | Power anode- |
| 2 | 5V | Power supply cathode + 5V / 1A power supply |
| 3 | NC | hang in the air |
| 4 | TXD | The module serial port sends the TTL level |
| 5 | RXD | The module serial port receives the TTL level |
| 6 | EN# | Module enabling pins, 0V low level enabled, 5V high level disability |
For more information on our products, please contact Jioptik.
