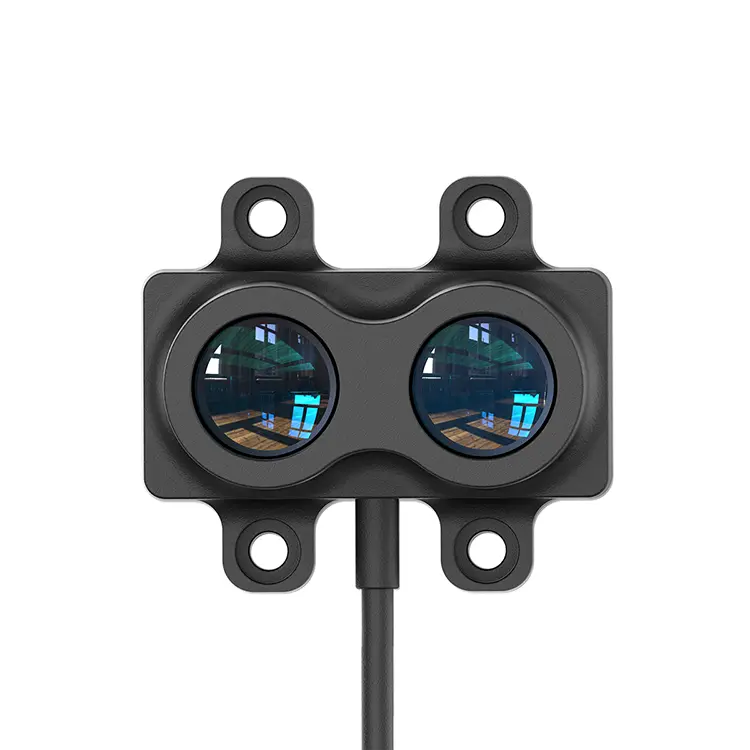

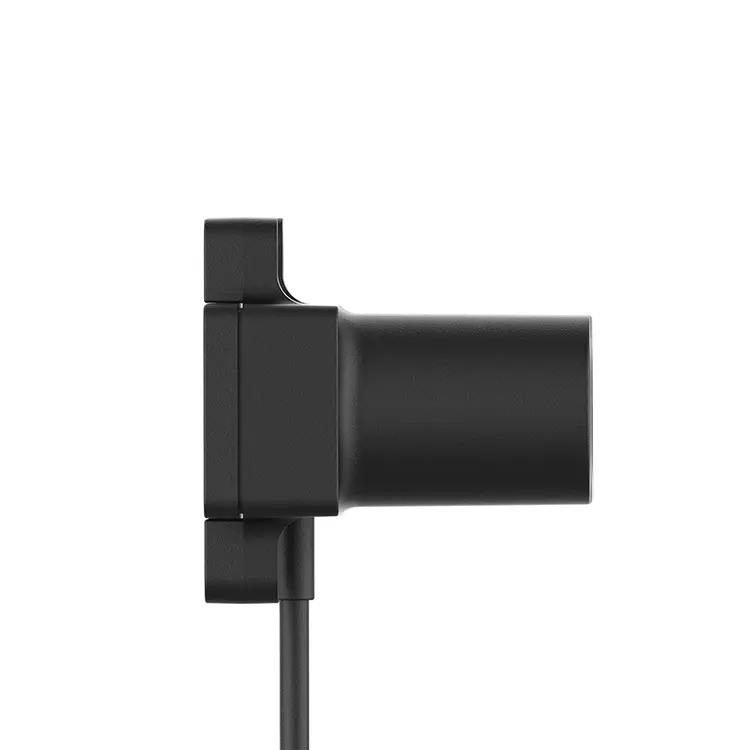

STA-LR-A20m TOF Laser Ranging Radar Sensor is a cost-effective short-range laser ranging radar sensor that has been significantly upgraded and optimized based on DeTof. Its range can reach up to 20m, with a more efficient optical system and optimized circuit design. While ensuring higher ranging performance, it also exhibits excellent performance in blind spots and power consumption. With the upgrade and optimization of algorithms, the error performance in different environments has also significantly improved.

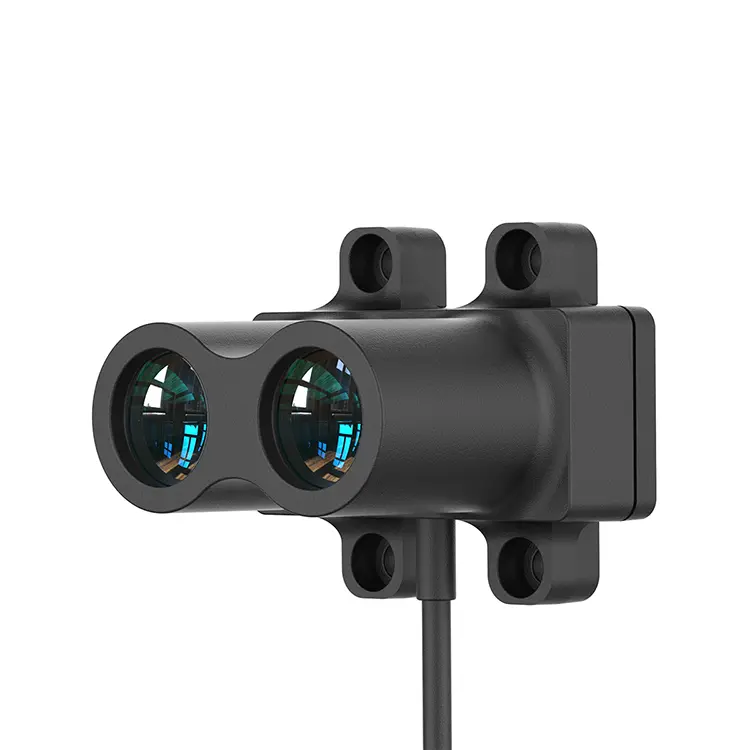

The STA-LR-A20 high-precision laser ranging radar lens adopts a coated glass lens to improve transmittance, achieve clearer ranging, and have higher glass hardness, scratch resistance, corrosion resistance, and extended service life. Built in temperature compensation enables precise measurement at a wide operating temperature range of -40 ° C to+70 ° C.It can be widely applied in fields such as unmanned aerial vehicle height control, intelligent transportation, intelligent parking lots, and smart agriculture.
| Product model | STA-LR-A20 | |
| Product performance | Measuring range | 20m@90%;7m@10% |
| Measurement frequency | 1-2000Hz | |
| repeatability | ＜3cm（@＞50%）, ＜5cm（@15%-50%）, 7cm（@＜15%） | |
| Range accuracy | ±3cm（≤6m）, ±0.5%(＞6m) | |
| Range resolution | 1cm | |
| Class of protection | IP65 | |
| Resistance to ambient light | 100Klux | |
| Optical parameter | Field Angle | 47mard（2.7°） |
| Laser beam divergence Angle | 34mard（1.9°） | |
| Laser beam wavelength | 850nm | |
| Eye safety | CLASS I(IEC 60825 − 1: 2014) | |
|
Communication interface |
Communication interface | LVTTL/RS485/IO/IIC |
| Mechanical interface |
XH-4P terminals(XHP-4) BMW cable connectors Tubular terminals(E0508) |
|
|
Mechanical electrical parameters |
Supply voltage | 5V |
| Maximum power consumption | ＜160mW | |
| others | Overall dimension | 30*30*34mm |
| Operating temperature | -20℃-70℃ | |
| weight | 20g | |
| Line length | 35cm | |
| Note: Range accuracy, range resolution, repetition accuracy, etc. were all tested indoors under the condition of 25℃ diffuse reflectance (90% reflectance). Changes in conditions may lead to variations in measurement results. | ||
The LR series high-precision laser ranging radar has 6 interfaces and 3 connectors to choose from.
6 types of interfaces
●Communication category: LVTTL/IIC/RS485 (ModBus)
●Switch type: I0 (3. 3V)/I0 (NPN)/IO (PNP)
3 types of connectors
●XH-4P connector (default): a connector widely used by electronic engineers.
●BMW cable connector (customized): IP67 dustproof and waterproof at the connector, easy to plug and unplug.
●Tube terminal (model: E0508): A widely used type of wiring terminal in automation equipment.

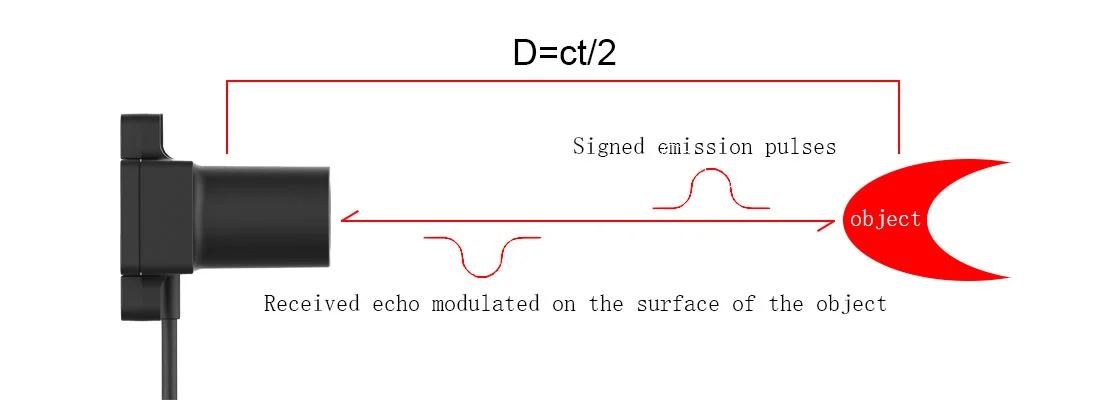

The LR series laser ranging radar uses improved DeTOF technology, inheriting the advantages of traditional pulse TOF method while combining with pre factory signature, making the LRxx series balance accuracy and speed, and perform well outdoors.
