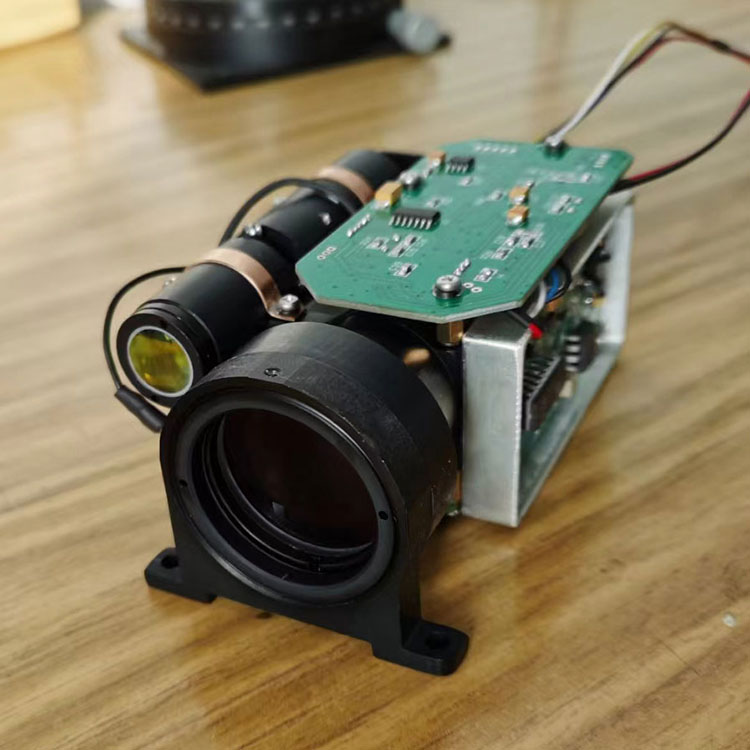

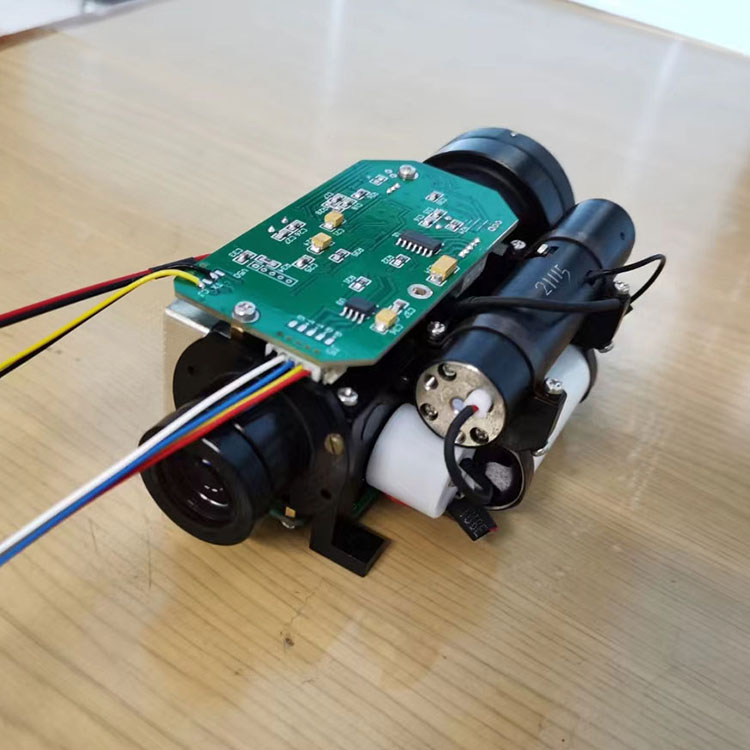

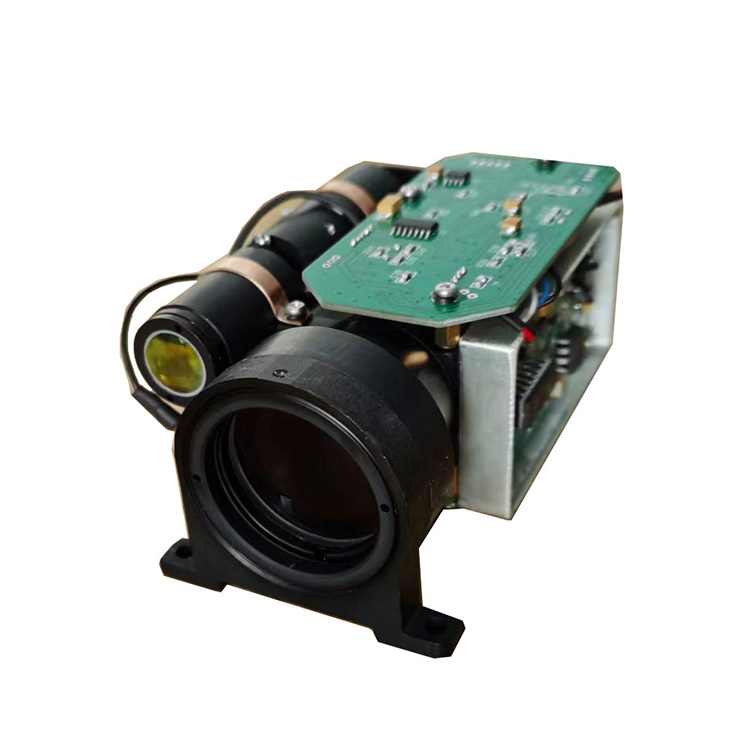

1064nm 10km Laser Rangefinder Module
1064nm 10km Laser Rangefinder Module
1064nm 10km Laser Rangefinder Module
1064nm 10km Laser Rangefinder Module
1064nm 10km Laser Rangefinder Module
1064nm 10km Laser Rangefinder Module

1064nm 10km Laser Rangefinder Module

Model:JIO-M6410X

Jioptik JIO-M6410X 1064nm 10km Laser Rangefinder Module adopts a 1064nm YAG laser module, which has the characteristics of high energy density, low power consumption, small size, and high accuracy. Suitable for single soldier handheld, vehicle mounted, airborne, shipborne and other system integration.
● Distance measurement performance: 10000 meters
● Distance measurement accuracy ± 2m
● Measurement accuracy ≥ 98%
● Weight ≤ 450g

Product Description


Introduction of 1064nm YAG LRF Module

1064nm 10km Laser Rangefinder Module is an optoelectronic product, in use carefully and gently put, to avoid losing hands and falling to the ground, resulting in damage. When testing the laser or calibrating the optical axis indoors, the objective lens of the rangefinder should be covered to avoid strong laser light from entering the objective lens and burning the photodetector. After a diffuse anti-dispersion laser, no harm to the human eye, but also can not intentionally look at the direction of the laser.

Distance measuring machine working power supply for 12V (10-14V), peak current 2A, using RS232 or RS422 two-way communication interface. Control, data commands, see the communication protocol.


Laser Safety Instructions

The laser is emitted from a small window at the front of the instrument, and the laser beam will burn the retina if it is directed into the human eye. When measuring the distance to a close and strongly reflective object, the strong laser light reflected back will burn out the photodetector of the rangefinder. When operating the rangefinder, you must be very careful, and it is strictly prohibited to aim the rangefinder at people or glass to measure the distance.

※ Prohibit looking directly at the laser beam, prohibit looking directly at the laser beam through optical lenses (such as eyepieces, binoculars, etc.), otherwise it will cause permanent damage to the human eye.

※ Strictly prohibit close range (within 500 metres) aiming at people for ranging operation, otherwise the laser will damage the human eye.

※ It is strictly prohibited to aim at mirror-like surfaces (e.g., mirrors, metal surfaces, full-reflective prisms) at a close distance (within 500 metres) for rangefinding operations, as the strong laser light that is reflected back will injure the human eye, and also cause irreparable damage to the photoelectric receiver tube.

※ Strictly forbidden to use the rangefinder for play, so as not to cause damage to the human eye.


TECHNICAL INDEX

Model JIO-M6410X
Wavelength 1064nm
Maximum range measurement 10000m (for buildings, ship targets)
Minimum range measurement 100m
ranging accuracy ±2m
Distance measurement frequency 6 times per minute, continuous ranging (in emergency cases, every 2 seconds, 10 times, rest for 30 seconds)
Distance from the selection range 30 to 5000 m continuously adjustable (adjusted at 10m intervals)
Quadrant measurement rate 98%
shock resistance 30G/11ms
vibration stress Per GJB899A-2009, B.3.3. 3
working power supply 12V (10~14V), peak current is 2A during laser operation, and standby current is less than 50 mA.
working temperature -40~+60℃
Storage temperature -43~+70℃
Module size 50*77*120mm
weight ≤450g
With external power supply and RS232 (or RS422) data communication interface


The external dimension of JIO-M6410X laser ranging module is shown below:

1064nm 10km Laser Rangefinder Module
