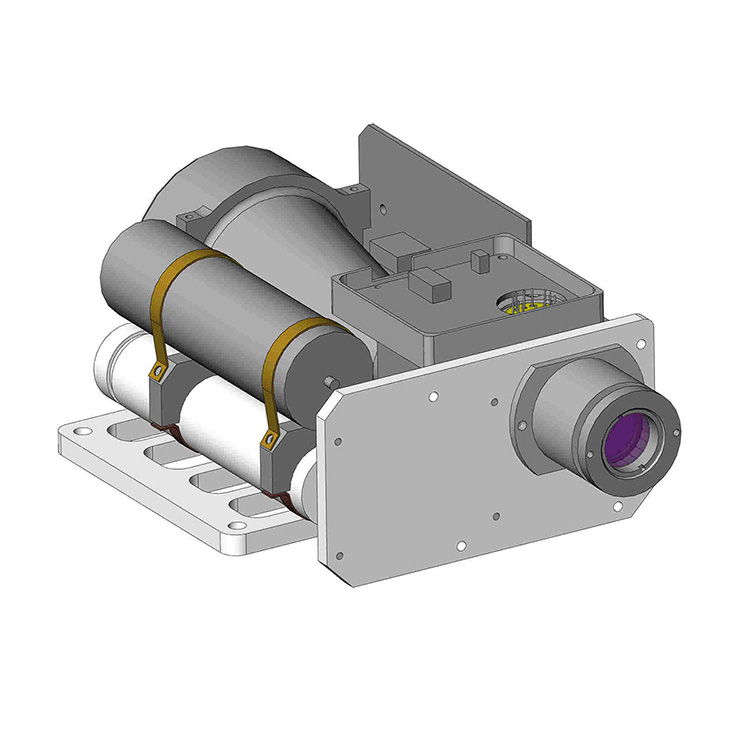

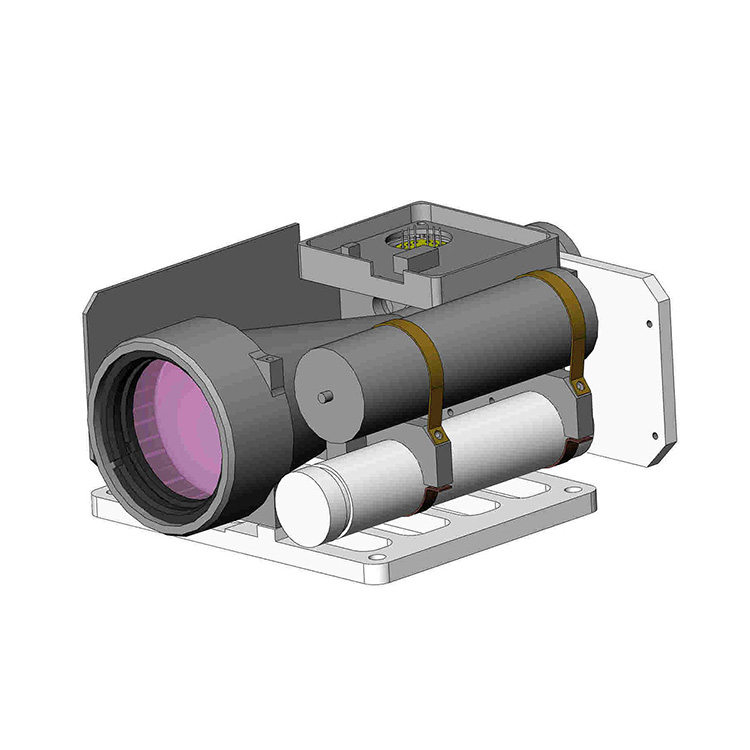

As the professional manufacturer, we would like to provide you high quality 1064nm 15km Laser Rangefinder Module.JIO-M6415X adopts a 1064nm YAG laser module, which has the characteristics of high energy density, low power consumption, small size, and high accuracy. Suitable for single soldier handheld, vehicle mounted, airborne, shipborne and other system integration.
● Distance measurement performance: 15000 meters
● Distance measurement accuracy ± 2m
● Measurement accuracy ≥ 98%
● Weight ≤ 1.2kg
1064nm 15km Laser Rangefinder Module is an optoelectronic product, in use carefully and gently put, to avoid losing hands and falling to the ground, resulting in damage. When testing the laser or calibrating the optical axis indoors, the objective lens of the rangefinder should be covered to avoid strong laser light from entering the objective lens and burning the photodetector. After a diffuse anti-dispersion laser, no harm to the human eye, but also can not intentionally look at the direction of the laser.
Distance measuring machine working power supply for 12V (10-14V), peak current 2A, using RS232 or RS422 two-way communication interface. Control, data commands, see the communication protocol.
The laser is emitted from a small window at the front of the instrument, and the laser beam will burn the retina if it is directed into the human eye. When measuring the distance to a close and strongly reflective object, the strong laser light reflected back will burn out the photodetector of the rangefinder. When operating the rangefinder, you must be very careful, and it is strictly prohibited to aim the rangefinder at people or glass to measure the distance.
※ Prohibit looking directly at the laser beam, prohibit looking directly at the laser beam through optical lenses (such as eyepieces, binoculars, etc.), otherwise it will cause permanent damage to the human eye.
※ Strictly prohibit close range (within 500 metres) aiming at people for ranging operation, otherwise the laser will damage the human eye.
※ It is strictly prohibited to aim at mirror-like surfaces (e.g., mirrors, metal surfaces, full-reflective prisms) at a close distance (within 500 metres) for rangefinding operations, as the strong laser light that is reflected back will injure the human eye, and also cause irreparable damage to the photoelectric receiver tube.
※ Strictly forbidden to use the rangefinder for play, so as not to cause damage to the human eye.
| Model | JIO-M6415X |
| Wavelength | 1064nm |
| Maximum range measurement | 15000m (for buildings, ship targets) |
| Minimum range measurement | 100m |
| ranging accuracy | ±2m |
| Distance measurement frequency | 15 times per minute, continuous ranging (in emergency cases, every 2 seconds, 10 times, rest for 30 seconds) |
| Distance from the selection range | 30 to 6000 m continuously adjustable (adjusted at 10m intervals) |
| Quadrant measurement rate | 98％ |
| shock resistance | 30G/11ms |
| vibration stress | Per GJB899A-2009, B.3.3. 3 |
| working power supply | 12V (10~14V), peak current is 2A during laser operation, and standby current is less than 50 mA. |
| working temperature | -40～+60℃ |
| Storage temperature | -42～+70℃ |
| Module size | 69*116*150 mm |
| weight | ≤1200g |
| With external power supply and RS232 (or RS422) data communication interface | |
For more information on our products, please contact Jioptik.
