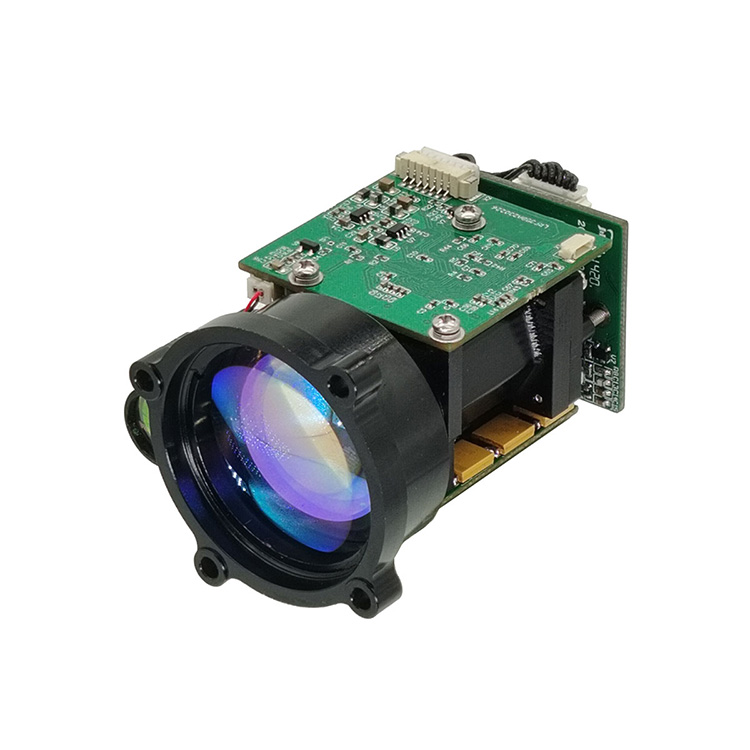

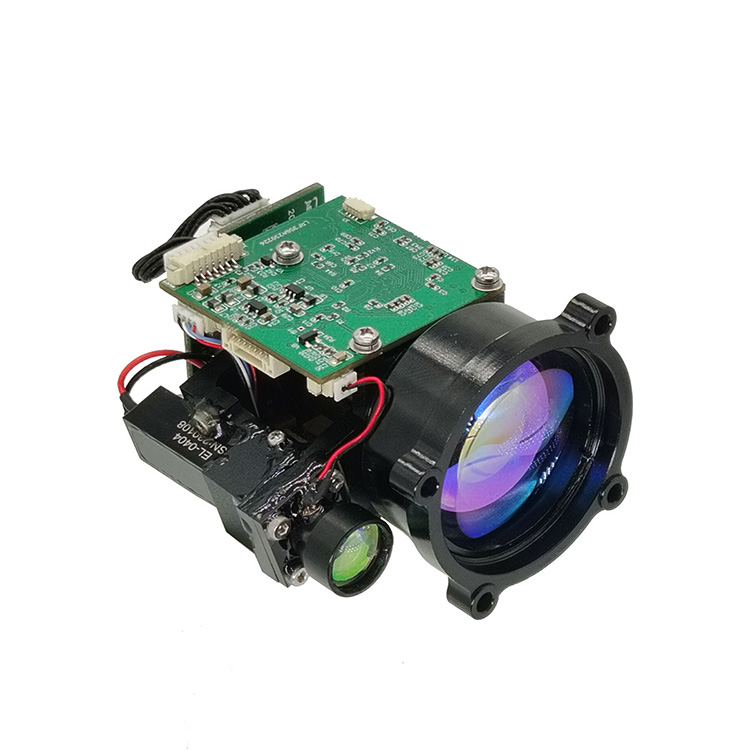

JIO-H1015X 10km Laser Rangefinder Module from Jioptik factory adopts self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety.
Range performance: 10000m (2.3x2.3m Targets),15000m (Maximum range)
Ranging accuracy ± 1m
Measurement accuracy ≥ 98%
Weight ≤ 130g
| Item | Index | |
| Model | JIO-H0913X | |
| Operating wavelength | 1535nm ±10nm | |
| Eye-Safe | Class 1 (IEC 60825-1) | |
| Receiving Aperture | Φ33mm | |
| Ranging range | 30-15000m | |
| Range performance | 15000m | Maximum range |
| 13000m | Big target,Reflectivity: 60 %, observer visibility 25 km | |
| 10000m | 2.3 × 2.3 m target size,Reflectivity: 30 %, observer visibility 15 km | |
| 4300m | 1 × 1 m target size,Reflectivity: 10 %, observer visibility 10 km | |
| Communication Interface | RS422 | |
| Humidity | ≤ 80% | |
| Ranging accuracy | ±1m | |
| Accuracy rate | ≥98% | |
| Divergence angle | ≤0.5mrad | |
| Ranging frequency | 1~10hz | |
| Continuous ranging time | ≥30min | |
| Non-parallelism of the laser optical axis to the mounting reference | <0.3mrad | |
| Size | ≤69mm×57mm×45mm | |
| Voltage | 5.6-8.4V | |
| Power consumption | Average power consumption ≤3W, peak power consumption ≤6W | |
| Working temperature | -40℃～+60℃ | |
| Storage temperature | -45℃～+70℃ | |
| Weight | ≤130g | |
Note: All performance indicators and interfaces can be customized according to requirements
Thermal imaging, night vision and other handheld mobile devices
Border observation and surveillance systems
Sensor kits for UAV pods and UGVs
(a) With single ranging and continuous ranging functions;
(b) With power-up/cycle/start-up self-test function;
(c) with the first and last target distance logic display function;
(d) With distance measurement times query function;
(e) Temperature alarm function;
(f) with over-current and over-voltage circuit protection function (design guarantee);
(g) with software remote upgrade function: directly upgrade the software through the communication interface.
a) Single maximum continuous ranging time: ≥35min;
b) The maximum interval time for continuous distance measurement again: ≤15s.
Laser optical axis stability ≤ 0.1mrad (full temperature range);
Verticality of the launching optical axis to the installation reference: ≤2mrad (design guarantee);
The laser rangefinder is connected externally with a CK connector (Model: A1257WR-S-7P).
Electrical Interface
The laser rangefinder interface is defined below:
| Terminal number | Serial No. | Connector Model | Signal Definition （RS422） | Other |
| X4 | X4-1 | A1257WR-S-7P | +12V | Laser rangefinder interface |
| X4-2 | GND | |||
| X4-3 | RS422-A | |||
| X4-4 | RS422-B | |||
| X4-5 | RS422-Y | |||
| X4-6 | RS422-Z | |||
| X4-7 | RS422-GND |
For more information on our products, please contact Jioptik.
