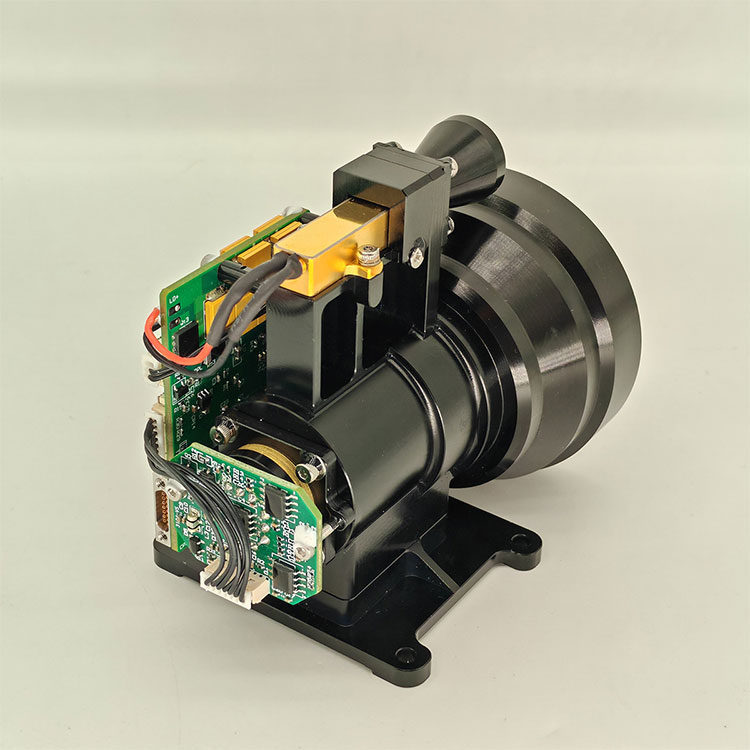

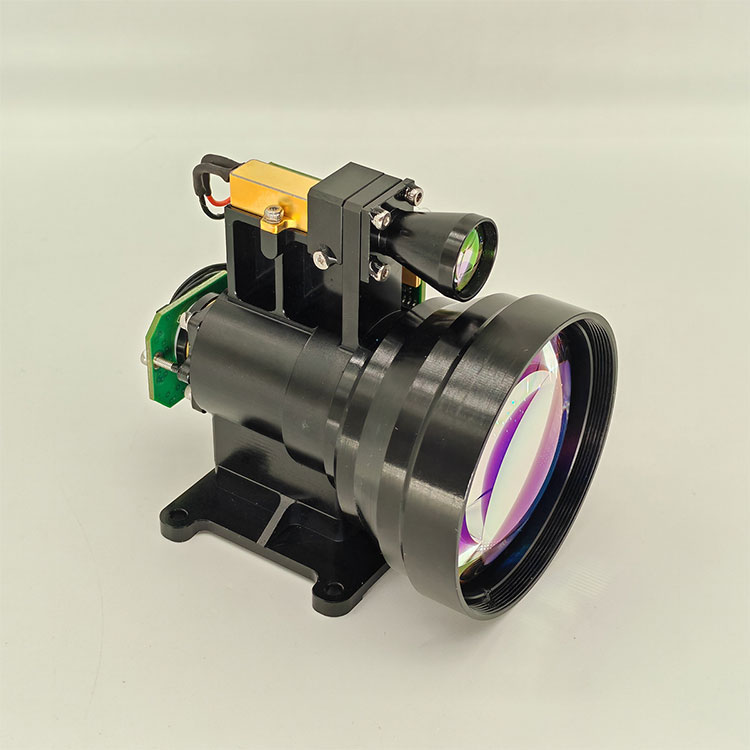

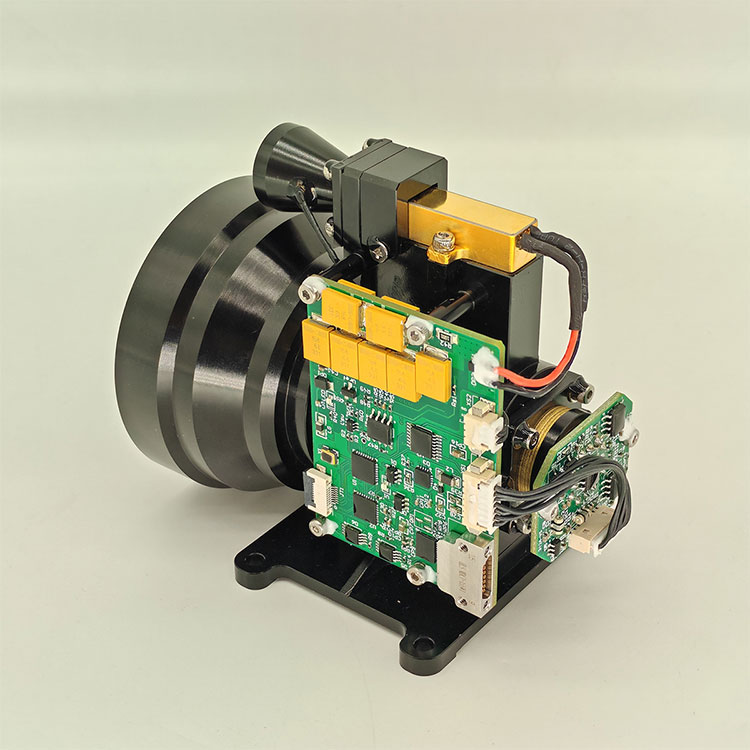

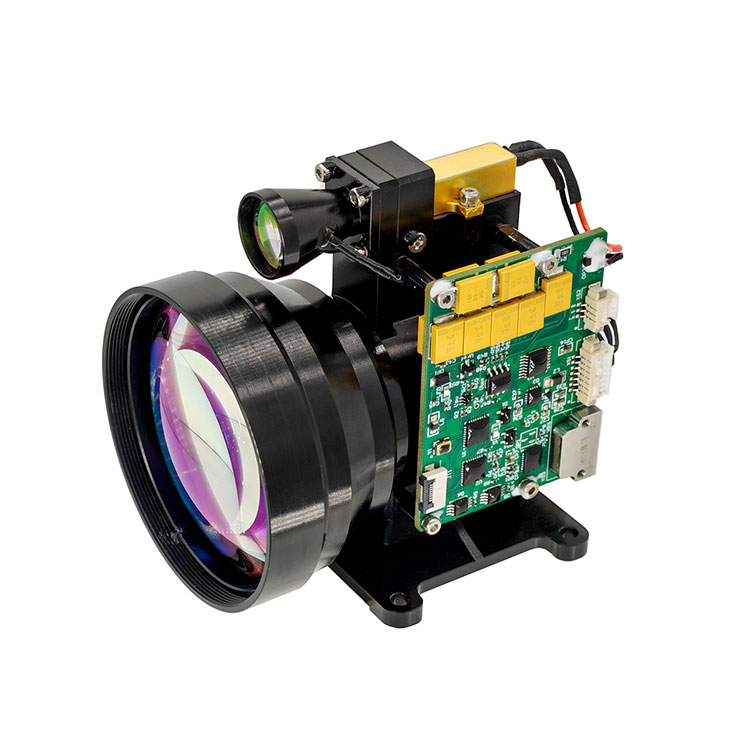

● STA-B1220X laser rangefinder module adopts self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety. You can rest assured to buy customized 12km Eye Safety Laser Rangefinder Module from us.
● Range performance: 12000m (2.3x2.3m NATO Target),20000m (Maximum range)
● Ranging accuracy ± 2m
● Measurement accuracy ≥ 98%
● Weight ≤ 350g
The B1220X laser rangefinder module is a military pulse laser rangefinder designed for application scenarios such as aircraft, UAV Pod, tanks, and scope. It has small size, light weight, low power consumption, stable performance, long measurement distance, and long service life, Human eye safety and other advantages, it is an important technical equipment to improve product aiming accuracy.
| Item | Technical parameter | Instruction |
| Model | STA-B1220X | |
| Working wavelength | 1535±5nm | |
| Ranging capability | 50m-20km | |
| Ranging range observer visibility 25 km | ≥20000m | Max Range |
| ≥15000m | Big target,Reflectivity: 0.6 | |
| ≥12000m | NATO Target, Reflectivity: 0.3 | |
| ≥8000m | People target size,Reflectivity: 0.1 | |
| ≥3200m | UAV | |
| Ranging accuracy | ±3m | 3δ |
| Ranging frequency | 1~10Hz adjustable | |
| Accuracy rate | ≥98% | |
| Divergence angle | ≤0.3mrad | |
| Receiving caliber | 57mm | |
| Communication Interface | RS422 | |
| Voltage | DC18~32V | |
| Working power | ≤3W | Normal temperature test |
| Peak power | ≤6W | Normal temperature test |
| Working temperature | -40℃～+60℃ | |
| Storage temperature | -55℃～+70℃ | |
| Size | ≤90mm×63mm×82mm | |
| Weight | ≤350g | |
| More function |
1. Distance blind spot setting gating function; 2. Self checking function (high voltage, temperature, etc.); 3. Distance resolution: 30m; |
|
| Connector model | MDC1-15SW1 | ||
| Pin | Define | Function | Remarks |
| 1 | VEE | Positive power input | 9-36V |
| 2 | GND | Power input ground | |
| 3 | RS422_T/R+ | ||
| 4 | RS422_T/R- | ||
| 5 | RS422_RXD- | ||
| 6 | RS422_RXD+ | ||
| 7 | RS232-TX | ||
| 8 | RS232-RX | ||
| 9 | TTL-TX | 3.3V | |
| 10 | TTL-RX | 3.3V | |
| 11 | GND | Communication ground | |
| 12 | NC | ||
| 13 | NC | ||
| 14 | NC | ||
| 15 | NC | ||
OEM/ODM ranging modules and custom solutions
The B1220X 12km Eye Safety Laser Rangefinder Module is designed for system integrators looking for a convenient, powerful and compact laser ranging solution. It provides reliable performance in a wide range of applications.
It is very small, ultra-light, has low power consumption and can be measured over a long distance. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and UAV or UGVs.
For more information on our products, please contact Jioptik.
