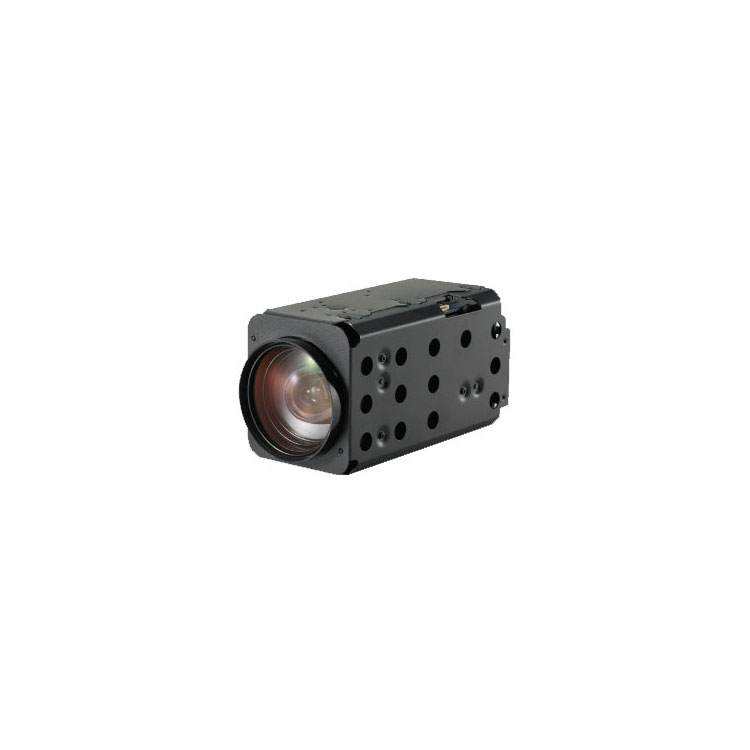

JIO-3622-DQ 2 Megapixel 36X Optical Zoom Ultra Starlight Digital Camera Module integrates an 36X optical electric zoom movement and a 2-megapixel high frame rate ultra starlight CMOS sensor, supporting electronic image stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode, etc., to adapt to all-weather monitoring environments.
● Ultra Starlight
● High frame rate
● Global exposure
● External synchronization support
● Quick start
● 6mm-216mm
● 30Pin Lvds connector, Pin to Pin Sony 7520 connector;
● 1080p/720p (50/25fps, 60fps/30fps)
● Digital Noise Reduction (2 D+ 3D)
● Privacy mask function
● Strong light suppression
● Motion Detection
● Fog Transparency
● Support VISCA, PeIco-D/P protocols
● Video Output: LVDS, EX-SDI, CVBS
| model | JIO-3622-DQ |
| Movement parameters | |
| Sensor type | 1/2.3 Sony Global shutter CMOS sensor |
| Effective pixel | 2.37 Million |
| minimal illumination | Color: 0.001 Lux; black and white: 0.0005 Lux |
| noise-signal ratio | ＞50dB |
| Day and night switching mode | Automatic ICR filter switch, automatic, color, black and white |
| Lens parameters | |
| focal distance | And f =6 – 216mm, 36 x optical zoom, and 32 x digital zoom |
| iris diaphragm | Maximum aperture: F 1.5 to F 4.8 |
| shutter | 1 / 25 seconds to 1 / 60,000 seconds; slow shutter support |
| Horizontal field of view angle | 52.62-1.95 degrees (wide Angle-looking far) |
| image parameter | |
| resolution ratio |
PAL：50/25fps (1920 × 1080,1280 × 720); NTSC：60/30fps (1920 × 1080,1280 × 720)； |
| Focus mode | Automatic focus / manual focus / one-click automatic focus |
| Strong light inhibition | support |
| Privacy block | The 24 regions are supported |
| Mobile detection | Support 3 regions |
| 3D & 2D for noise reduction | support |
| Through the fog | support |
| Trigger way | Support external synchronization |
| Baud rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| access protocol | VISCA / PeIco-D / PelcoP / Update |
| language | English / simplified Chinese / Traditional Chinese / Japanese |
| standard | NTSC / PAL |
| interface parameters | |
| video monitor 525 vidicon video out | LVDS , EX-SDI ,CVBS |
| general requirements | |
| Operating temperature and humidity | -10℃ ~50℃, humidity is less than 90% (no condensation) |
| power suppl | DC 9V -15V ，550M A |
| size | 124*55.6*64mm |
| weight | 410g |
If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, subject to the physical object.
