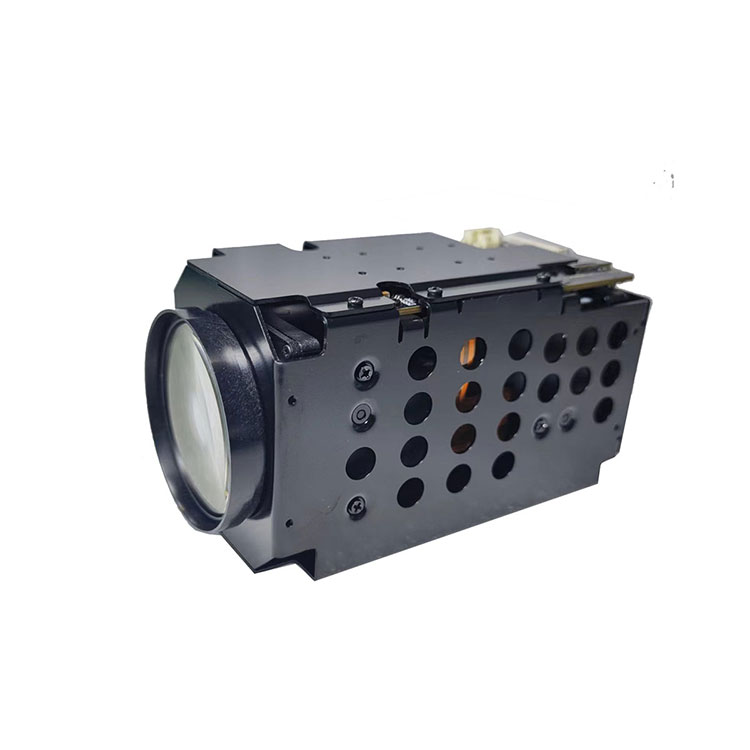

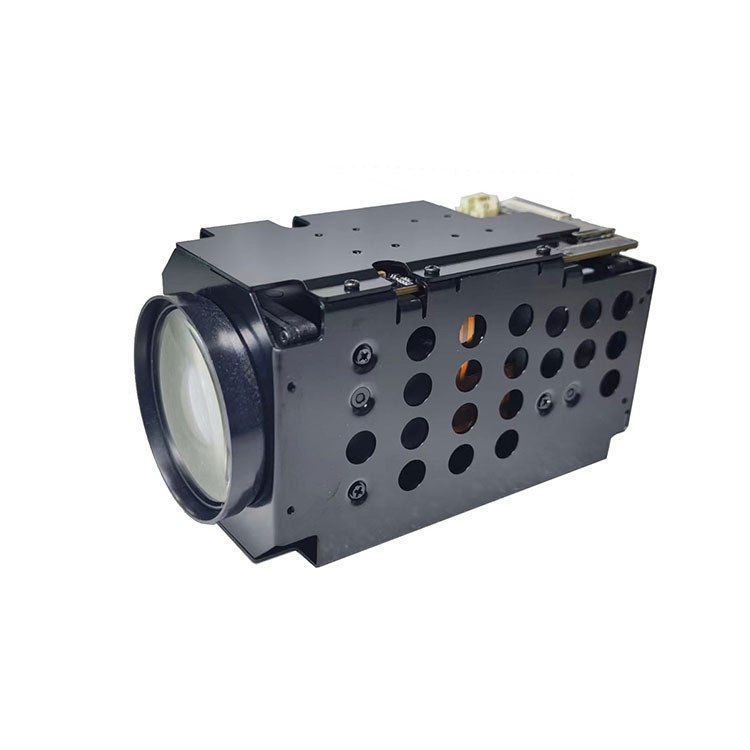

High quality 2 Megapixel 38X Optical Zoom Ultra Starlight Network Camera Module is offered by China manufacturer Jioptik. JIO-3822-WG Network Zoom Camera Module integrates an 38X optical electric zoom movement and a 2-megapixel high frame rate ultra starlight CMOS sensor, supporting electronic image stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode, etc., to adapt to all-weather monitoring environments.
Jioptik is a leading China Network Zoom Camera Module manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our 2 Megapixel 38X Optical Zoom Ultra Starlight Network Camera Module have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you.
● Ultra Starlight
● High frame rate
● 38x optical zoom
● 2 Megapixel 1920×1080P, P/N: 50fps /60fps
● Super starlight level, 0.0005Lux/F1.5(Color),0.0001Lux/F1.5(B/W)
● Support H.265/H.264, H.265+/H.264+ video compression algorithm
● Support electronic stabilization, distortion correction, shadow correction, and corridor mode.
● Support optical fog transmission (optional), clear image
● Support 3D positioning function
● Support 120dB optical wide dynamic
● Support SD card function, maximum 256G
● Support GB/28181, onvif.
Visible light module interface (optional for special applications)
● (Movement) Single IP output mode: dual visible light (zoom + fixed focus).
●(Motherboard) Single IP output combination mode: dual visible light (fixed focus + fixed focus), (visible light fixed focus + thermal imaging), (single thermal imaging).
Network interface
● Industry standard: 36 PIN interface
● PIN TO PIN A kang
● Support a kang private agreement
Humanized installation hole position
● A variety of installation holes, more stable installation, more convenient
● Reserved camera installation hole position is easy to use
Multi-function serial port
● External connection of the lamp board
● External connection sensor
● External GPS
● Support power failure state memory function.
● Support the functions of timer capture and event capture.
● Support motion/crossing detection and area intrusion.
● Support three streams technology, each stream can be configured independently.
● Support 500 preset bits, 8 cruise scans.
● Support timed task preset points, (pattern, cruise, left and right) scanning.
● Support 1 channel audio input/output and 1 channel alarm input/output.
● Support backlight compensation, strong light suppression, automatic electronic shutter, 3D noise reduction and other functions.
| model | STA-3822-WG |
| Movement parameters | |
| Sensor type | 1/2.8 Progressive Scan CMOS |
| Effective pixel | 2 million |
| minimal illumination | Color:0.0005 Lux @(F1.5,AGC ON);B/W:0.0001 Lux @(F1.5,AGC ON)) |
| noise-signal ratio | ＞55dB |
| Day and night switching mode | Automatic ICR filter switch, automatic, color, black and white |
| Lens parameters | |
| focal distance | f=6.5-247mm,38X optical zoom and digital zoom of 16 x |
| iris diaphragm | Automatic / manual, maximum aperture: F1.5~F 4.8 |
| shutter | 1 / 25 seconds to 1 / 100,000 seconds; slow shutter support |
| Horizontal field of view angle | 64.8-1.8degrees (wide Angle-looking far) |
| Near camera distance | 100mm-1500mm (wide Angle-far) |
| encoded mode | |
| Video compression standard | H.265 / H.264，H .265+/H.264+ |
| H.265 Ending type | BaseLine Profile / Main Profile / High Profile |
| H.264 Ending type | BaseLine Profile / Main Profile / High Profile |
| Video compression code rate | 64Kbps~16Mbps |
| Audio compression standard | G.711A /G.711U/G.726/AAC |
| Audio compression code rate | 16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC) |
| image parameter | |
| Main code flow resolution |
50Hz: 50fps (1920 × 1080,1280 × 720); 60Hz: 60fps (1920 × 1080,1280 × 720)； |
| Second code-stream resolution | Independent of the main code stream set 50Hz: 50fps(720×576，352×288); 60Hz: 60fps(720×576，352×288) |
| The third code-stream resolution |
50Hz: 50fps(1280 × 720，720×576，352×288); 60Hz: 60fps(1280 × 720，720×576，352×288) |
| Image Settings | Brightness, contrast, saturation, sharpness, color, adjustable through the browser |
| Backlight compensation | Supported, and can have customizable areas |
| Strong light inhibition | Support, and the eclipse function |
| Exposure mode | Auto exposure / manual exposure / antidrag shadow / low light priority / highlight priority / aperture priority / shutter priority / lock mode |
| Focus mode | Automatic focus / manual focus / semi-automatic focus |
| zone focusing | support |
| Electronic fog | support |
| Electronic anti-shake | support |
| Day and night conversion | Automatic, manual, image algorithm, timing, serial port trigger |
| 3D noise reduction | support |
| Picture superposition | Support BMP 24 bit image superposition, can be customized area |
| permeability | Automatic, and area selection |
| Region of interest (ROI) | Support three code flow, set 4 fixed areas |
| Network function | |
| memory function | Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support |
| Support agreement | TCP/IP,MTU ,HTTP,HTTPS,FTP,DHCP,D DNS,UPNP ,RTSP,RT M P,NTP,SMTP,PPPOE |
| API | Support ONVIF, G B 28181 protocol, support SDK and third-party platform access |
| interface parameters | |
| network interface | 36pin FFC (including network port, RS485, RS232, SDHC, Alarm In / Out, Line In / Out, power supply) |
| External interface | HDMI |
| general requirements | |
| Operating temperature and humidity | -30℃ ~60℃, humidity is less than 95% (no condensation) |
| power suppl | DC12V±10% ，2A |
| power dissipation | 2.5W Static (4.5 WMAX) |
| size | 124.6*56*66mm |
| weight | 419g (with case); 217.5g (without case) |
If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, subject to the physical object.
