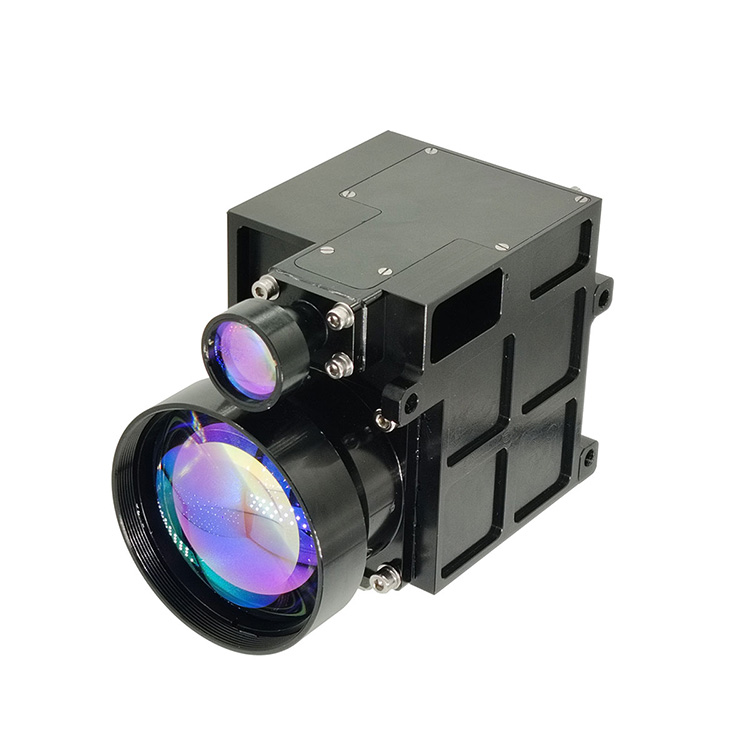

JIO-H2025X 20km Laser Rangefinder Module adopts the 1535nm eye-safe erbium glass laser module independently developed by Jioptik factory, which has the characteristics of low power consumption, small size, high precision.
Maximum measuring range: 20000m (2.3x2.3m NATO Target); Max Ranging 25000m.
Ranging accuracy ± 2m
Measurement accuracy ≥ 98%
Weight ≤870g

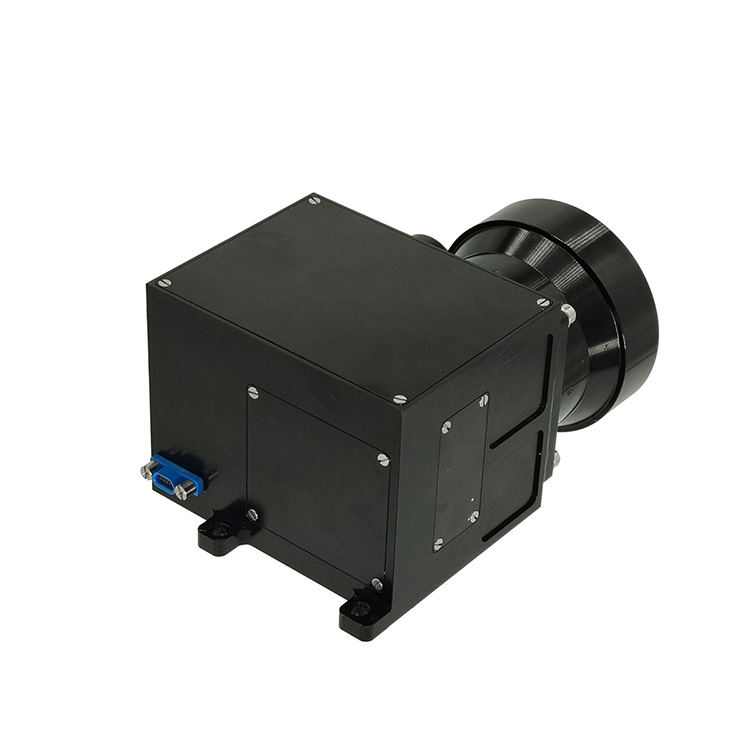

The JIO-H2025X 20km Laser Rangefinder Module consists of a laser, a transmitter-receiver optical system, a driver power supply board, an amplifier board and a main control board. The structural parts are made of aluminum alloy with oxidized surface and fixed with 3 M2.5 threaded holes. The product is mainly used for target distance measurement, suitable for UAV, thermal imaging, security equipment and other optoelectronic system integration, can realize the first and last target ranging, self-check information response, fault localization failure mode feedback and other functions, has a small size, light weight, high precision, easy to integrate, strong environmental adaptability and other characteristics.
| Module | JIO-H1520X | |
| Operating wavelength | 1.535nm | |
| Eye-Safe | Class 1 (IEC 60825-1) | |
| Receiving Aperture | Φ65mm | |
| Ranging range | 100-25000m | |
| Ranging capability | ≥25000m | Maximum range |
| ≥23000m | Big Target (Reflectivity 30 %, Observer visibility 25 km) | |
| ≥20000m | 2.3 × 2.3m NOTA Target (Reflectivity 30 %, Observer visibility 25 km) | |
| Ranging capability (10% reflectivity, 10Km visibility) | ≥10000m | 1 ×1 m target |
| ≥8000m | 1.7 ×0.5m Person target | |
| ≥5000m | 0.3×0.2m UAV target | |
| Mini Range | ≤50m | |
| Ranging accuracy | ≤2m | |
| Ranging frequency | 1~5Hz | |
| Accuracy rate | ≥98% | |
| Divergence angle | ≤0.5mrad | |
| Size | 132.2×74.5×102.7mm(Without connector) | |
| Weight | ≤870g | |
| Voltage | 22V～34V | |
| Average Power | ≤10W | |
| Working temperature | -40℃~+60℃ | |
| Storage temperature | -50℃~+70℃ | |
Note: All performance indicators and interfaces can be customized according to requirements
