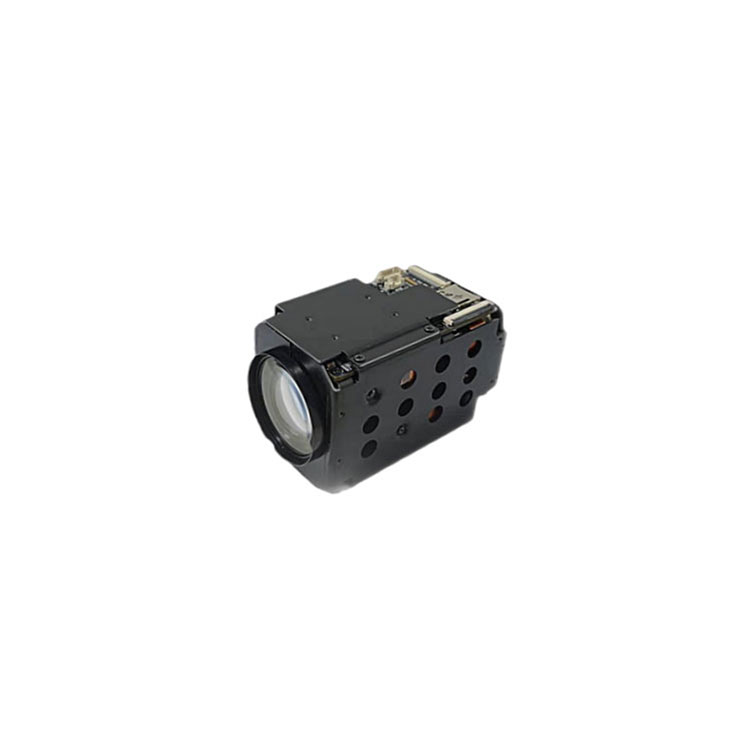

China Jioptik JIO-2522-HG 2MP 25X Optical Zoom Camera Module Network and HDMI integrates an 25X optical electric zoom movement and a 2-megapixel high frame rate ultra starlight CMOS sensor, supporting electronic image stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode, etc., to adapt to all-weather monitoring environments.
These are related to the 2MP 25X Optical Zoom Camera Module Network and HDMI news, in which you can learn about the updated information in Network and HDMI Zoom Camera Module, to help you better understand and expand market. Because the market for Network and HDMI Zoom Camera Module is evolving and changing, so we recommend that you collect our website, and we will show you the latest news on a regular basis.
● Ultra Starlight
● High frame rate
● 25x optical magnification
● 2 million pixels 1920x1080P, P / N: 50 fps / 60 fps
● Super Starlight, 0.0005 Lux / F1.5 (color), 0.0001 Lux / F1.5 (black and white)
● support H.265/H.264,H.265+/H.264 + video compression algorithm
● Support electronic shake stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode
● Support for the 3D positioning function
● Support for 120dB optical width dynamics
● Support for SD card function, the maximum size is 256G
● Support for GB / 28181, onvif
HDMI, the output interface
●HDMI output
Network interface
● Industry standard: 36 PIN interface
● PIN TO PIN A kang
● Support a kang private agreement
Humanized installation hole position
● A variety of installation holes, more stable installation, more convenient
● Reserved camera installation hole position is easy to use
Multi-function serial port
● External connection of the lamp board
● External connection sensor
● External GPS
● Support the power-off state memory function
● Support timing and event graphics and other functions
● Support for mobile / cross-border detection, area intrusion and other functions
● Support three-code flow technology, each code flow can be configured independently
● Supports 500 preset bits, 8 cruise scanning
● Supports timing task preset points, (pattern, cruise, left and right) scanning
● Support 1 audio input / output and 1 alarm input / output
● Support backlight compensation, strong light suppression, automatic electronic shutter, 3D noise reduction and other functions
| model | STA-2522-HG |
| Movement parameters | |
| Sensor type | 1/1.8 Progressive Scan CMOS |
| Effective pixel | Two million |
| minimal illumination | Color: 0.0005 Lux @ (F1.5, AGC ON); black and white: 0.0001 Lux @ (F1.5, AGC ON) |
| noise-signal ratio | ＞55dB |
| Day and night switching mode | Automatic ICR filter switch, automatic, color, black and white |
| Lens parameters | |
| focal distance | And f = 6.4-160mm，25X optical zoom and digital zoom of 16 x |
| iris diaphragm | Automatic / manual, maximum aperture: F1.5~F 3.4 |
| shutter | 1 / 25 seconds to 1 / 100,000 seconds; slow shutter support |
| Horizontal field of view angle | 62-3.5 degrees (wide Angle-looking far) |
| Near camera distance | 100mm-1500mm (wide Angle-far) |
| encoded mode | |
| Video compression standard | H.265 / H.264，H .265+/H.264+ |
| H.265 Ending type | BaseLine Profile / Main Profile / High Profile |
| H.264 Ending type | BaseLine Profile / Main Profile / High Profile |
| Video compression code rate | 64Kbps~16Mbps |
| Audio compression standard | G.711A /G.711U/G.726/AAC |
| Audio compression code rate | 16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC) |
| image parameter | |
| Main code flow resolution |
50Hz: 50fps (1920 × 1080,1280 × 720); 60Hz: 60fps (1920 × 1080,1280 × 720)； |
| Second code-stream resolution | Independent of the main code stream set 50Hz: 50 fps (720576,352288); 60Hz: 60 fps (720576,352288) |
| The third code-stream resolution |
50Hz: 50fps(1280 × 720，720×576，352×288); 60Hz: 60fps(1280 × 720，720×576，352×288) |
| Image Settings | Brightness, contrast, saturation, sharpness, color, adjustable through the browser |
| Backlight compensation | Supported, and can have customizable areas |
| Strong light inhibition | Support, and the eclipse function |
| Exposure mode | Auto exposure / manual exposure / antidrag shadow / low light priority / highlight priority / aperture priority / shutter priority / lock mode |
| Focus mode | Automatic focus / manual focus / semi-automatic focus |
| zone focusing | support |
| Electronic fog | support |
| Electronic anti-shake | support |
| Day and night conversion | Automatic, manual, image algorithm, timing, serial port trigger |
| 3D noise reduction | support |
| Picture superposition | Support BMP 24 bit image superposition, can be customized area |
| permeability | Automatic, and area selection |
| Region of interest (ROI) | Support three code flow, set 4 fixed areas |
| Network function | |
| memory function | Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support |
| Support agreement | TCP/IP,MTU ,HTTP,HTTPS,FTP,DHCP,D DNS,UPNP ,RTSP,RT M P,NTP,SMTP,PPPOE |
| API | Support ONVIF, G B 28181 protocol, support SDK and third-party platform access |
| interface parameters | |
| network interface | 36pin FFC (including network port, RS485, RS232, SDHC, Alarm In / Out, Line In / Out, power supply) |
| External interface | HDMI |
| general requirements | |
| Operating temperature and humidity | -30℃ ~60℃, humidity is less than 95% (no condensation) |
| power suppl | DC12V±10% ，2A |
| power dissipation | 2.5W Static (4.5 WMAX) |
| size | 98.9*52*60 |
| weight | 329g (with enclosure); 179.5g (without enclosure) |
If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, subject to the physical object.
