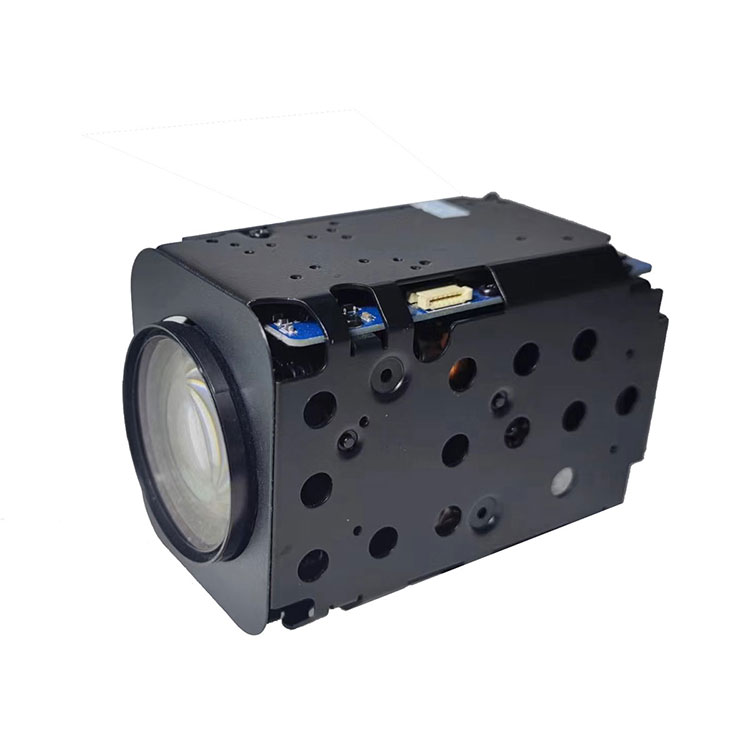

As the professional manufacturer, we would like to provide you 2MP 30X Optical Zoom Ultra Starlight Camera Module. JIO-3023-D Zoom Camera Module integrates an 30X optical electric zoom movement and a 2-megapixel high frame rate ultra starlight CMOS sensor, supporting electronic image stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode, etc., to adapt to all-weather monitoring environments.
Our strong R&D and production capabilities provide you with high quality OEM/ODM services. You are welcomed to come to our factory to buy the latest selling, low price, and high-quality 2MP 30X Optical Zoom Ultra Starlight Camera Module. We look forward to cooperating with you. Contact Jioptik now for a quote and more product information.
● Fast startup
● Ultra-low latency 30ms (60 fps mode)
● 30x optical zoom, 32x digital zoom
● Same lens as Sony7520 movement;
● Comparable size to Sony7520 movement;
● 30Pin Lvds connector, Pin to Pin Sony 7520 connector;
● 1080p/720p (50/25fps, 60fps/30fps)
● 4.3mm-129mm
● Digital Noise Reduction (2 D+ 3D)
● Privacy mask function
● Strong light suppression
● Motion Detection
● Fog Transparency
● Support VISCA, PeIco-D/P protocols
● Video Output: LVDS, EX-SDI (Overseas), CVBS
| model | JIO-3023-D |
| Movement parameters | |
| Sensor type | 1/2.8" Panasonic CMOS |
| Effective pixel | 235 million |
| minimal illumination | Color: 0.02 Lux; black and white: 0.001 Lux |
| noise-signal ratio | ＞50dB |
| Day and night switching mode | Automatic ICR filter switch, automatic, color, black and white |
| Lens parameters | |
| focal distance | And f =4.3-129mm ，30 x optical changes and 32 x numbers |
| iris diaphragm | Maximum aperture: F 1.6 to F 4.7 |
| shutter | 1/25 sec to 1/30,000 sec; slow shutter support |
| Horizontal field of view angle | 65.1-2.34 degree (wide Angle-looking far) |
| image parameter | |
| resolution ratio |
50/25fps (1920 × 1080,1280 × 720); 60/30fps (1920 × 1080,1280 × 720)； |
| Focus mode | Automatic focus / manual focus / one-click automatic focus |
| Strong light inhibition | support |
| Privacy block | Support 24 regions |
| Mobile detection | Support 3 regions |
| 3D & 2D for noise reduction | support |
| Through the fog | support |
| Baud rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| access protocol | VISCA / PeIco-D / PelcoP / Update |
| language | English / simplified Chinese / Traditional Chinese / Japanese |
| standard | NTSC / PAL |
| interface parameters | |
| video monitor 525 vidicon video out | LVDS, EX-SDI,CVBS |
| general requirements | |
| Operating temperature and humidity | -30℃~60℃, humidity less than 90% (no condensation) |
| power suppl | DC 9V-15V ，500MA |
| size | 88*50*60mm |
| weight | 240g |
If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, and the details are subject to the physical object.
For more information on our products, please contact Jioptik.
