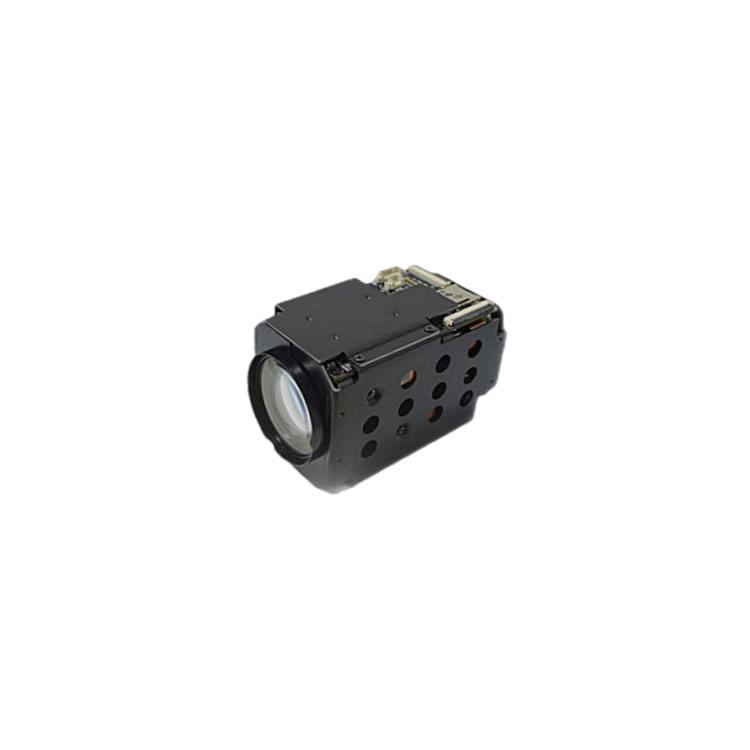

Model:JIO-0822-DG

JIO-0822-DG 2MP 8X Optical Zoom Camera Module Digital and Network integrates an 8X optical electric zoom movement and a 2-megapixel high frame rate ultra starlight CMOS sensor, supporting electronic image stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode, etc., to adapt to all-weather monitoring environments.

Product Description

Product features

● High frame rate

● Ultra Starlight

● 8X optical magnification

● 2 million pixels 1920x1080P, P / N: 50 fps / 60 fps

● Super Starlight, 0.0005 Lux / F1.5 (color), 0.0001 Lux / F1.5 (black and white)

● support H.265/H.264,H.265+/H.264 + video compression algorithm

● Support electronic shake stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode

● Support for the 3D positioning function

● Support for 120dB optical width dynamics

● Support for SD card function, the maximum size is 256G

● Support for GB / 28181, onvif

LVDS digital interface

● Industry standard: 30 PIN LVDS interface

● PIN TO PIN SONY 7520D

● Through the conversion board, it can be converted to SDI, HDMI, analog (CVBS/BNC) and other interface outputs

Network interface

● Industry standard: 36 PIN interface

● PIN TO PIN A kang

● Support a kang private agreement

Humanized installation hole position

● A variety of installation holes, more stable installation, more convenient

● Reserved camera installation hole position is easy to use

Multi-function serial port

● External connection of the lamp board

● External connection sensor

● External GPS


Functional features

● Support the power-off state memory function

● Support timing and event graphics and other functions

● Support for mobile / cross-border detection, area intrusion and other functions

● Support three-code flow technology, each code flow can be configured independently

● Supports 500 preset bits, 8 cruise scanning

● Supports timing task preset points, (pattern, cruise, left and right) scanning

● Support 1 audio input / output and 1 alarm input / output

● Support backlight compensation, strong light suppression, automatic electronic shutter, 3D noise reduction and other functions


Specification parameters

model JIO-0822-DG
Movement parameters
Sensor type 1/1.8 Progressive Scan CMOS
Effective pixel Two million
minimal illumination Color: 0.0005 Lux @ (F1.5, AGC ON); black and white: 0.0001 Lux @ (F1.5, AGC ON)
noise-signal ratio >55dB
Day and night switching mode Automatic ICR filter switch, automatic, color, black and white
Lens parameters
focal distance And f = 9-72mm, 8 x optical zoom and digital zoom of 16 x
iris diaphragm Automatic / manual, maximum aperture: F1.5~F 3.4
shutter 1 / 25 seconds to 1 / 100,000 seconds; slow shutter support
Horizontal field of view angle 59-6.9 degrees (wide Angle-looking far)
Near camera distance 100mm-1500mm (wide Angle-far)
encoded mode
Video compression standard H.265 / H.264,H .265+/H.264+
H.265 Ending type BaseLine Profile / Main Profile / High Profile
H.264 Ending type BaseLine Profile / Main Profile / High Profile
Video compression code rate 64Kbps~16Mbps
Audio compression standard G.711A /G.711U/G.726/AAC
Audio compression code rate 16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC)
image parameter
Main code flow resolution 50Hz: 50fps (1920 × 1080,1280 × 720);
60Hz: 60fps (1920 × 1080,1280 × 720);
Second code-stream resolution Independent of the main code stream set 50Hz: 50 fps (720576,352288); 60Hz: 60 fps (720576,352288)
The third code-stream resolution 50Hz: 50fps(1280 × 720,720×576,352×288);
60Hz: 60fps(1280 × 720,720×576,352×288)
Image Settings Brightness, contrast, saturation, sharpness, color, adjustable through the browser
Backlight compensation Supported, and can have customizable areas
Strong light inhibition Support, and the eclipse function
Exposure mode Auto exposure / manual exposure / antidrag shadow / low light priority / highlight priority / aperture priority / shutter priority / lock mode
Focus mode Automatic focus / manual focus / semi-automatic focus
zone focusing support
Electronic fog support
Electronic anti-shake support
Day and night conversion Automatic, manual, image algorithm, timing, serial port trigger
3D noise reduction support
Picture superposition Support BMP 24 bit image superposition, can be customized area
permeability Automatic, and area selection
Region of interest (ROI) Support three code flow, set 4 fixed areas
Network function
memory function Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support
Support agreement TCP/IP,MTU ,HTTP,HTTPS,FTP,DHCP,D DNS,UPNP ,RTSP,RT M P,NTP,SMTP,PPPOE
API Support ONVIF, G B 28181 protocol, support SDK and third-party platform access
interface parameters
network interface 36pin FFC (including network port, RS485, RS232, SDHC, Alarm In / Out, Line In / Out, power supply)
External interface HDMI
general requirements
Operating temperature and humidity -30℃ ~60℃, humidity is less than 95% (no condensation)
power suppl DC12V±10% ,2A
power dissipation 2.5W Static (4.5 WMAX)
size 98.9*52*60
weight 329g (with enclosure); 179.5g (without enclosure)

If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, subject to the physical object.


Overall dimension

2mp 8x Optical Zoom Camera Module Digital And Network
