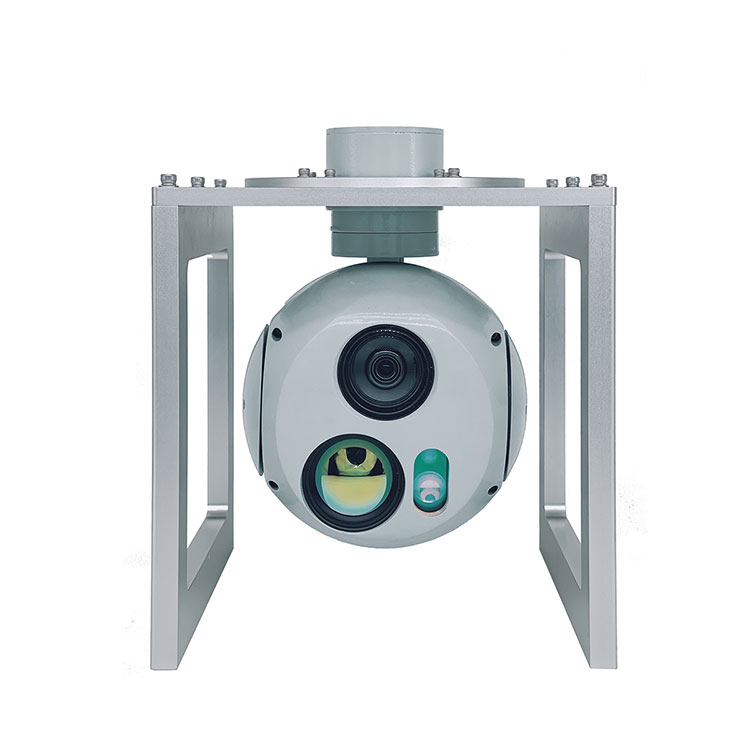

● As the professional manufacturer, we would like to provide you 3-Axis 3-Light UAV Optronic Pod.STA-GD1401 optronic pod, equipped with a visible camera, thermal imaging infrared components and laser rangefinder, can be day and night continuous reconnaissance, target location, geo-guidance and video recording.
● Visible light camera magnification:30X
● Infrared thermal imaging: 640x512
● Laser ranging range: 35-5000m
STA-GD1401 3-Axis 3-Light UAV Optronic Pod is equipped with a 30x zoom visible camera, fixed-focus long-wave uncooled infrared components, laser rangefinder, three-axis gyroscope, video processing module for multi-rotor, fixed-wing and other unmanned platforms to provide a small, lightweight, low-power solution, can be coordinated with various platforms to carry out patrolling, surveillance, reconnaissance, search and rescue and other projects.
With anti-disturbance, visual axis stabilisation
With visible and infrared reconnaissance function
Visible and infrared image enhancement function
With laser ranging function
With manual, locking, scanning, guiding, tracking and other work modes
With the function of target positioning and geographic guidance according to the information of the carrier aircraft.
Multi-target detection and alert function
With video storage and export function
Continuous day and night surveillance
Image Enhancement Picture-in-Picture
Laser Ranging
Multi-target detection
Target Positioning
Geo-guidance
Video Recording
Note: This product can be customized according to demand.
| Performance Overview | |
| Size | 173mm×140mm×206mm |
| Weight | 1.6kg |
| Azimuth Angle Range | 360°Progression |
| Tilt Angle Range | +20°～-110°（Horizontal forward is 0） |
| Roll Angle Range | +30°～-30° |
| Stabilisation Accuracy | ≤0.1mrad（RMS） |
| Tracking Accuracy | ≤0.2mrad（RMS） |
| Maximum tracking angular velocity | ≥10°/s |
| Operating Temperature | －40℃～＋55℃ |
| Electrical parameters | |
| Power supply |
24V DC power supply Average power consumption: ≤30W |
| External image interface | network digital signal |
| External communication interface | RS422 |
| Optical parameters | |
| LRF |
Wavelength: 1.54μm Range: 35m～5000m |
| Visible light |
Pixel: 1920×1080 Field of view: 2.3°×1.3°～63°×35.4°(focal length 4.3mm～129mm) Visibility ≥23km, relative humidity ≤70%, observation 4m×6m target Detection distance: ≥6km, recognition distance: ≥3.5km |
| Infrared thermal imager |
Pixel: 640×512 Field of view: 8.7°×7° (focal length 50mm) Visibility ≥ 23km, relative humidity ≤ 70%, observation of 4m × 6m target, target background temperature difference > 5k, detection distance: ≥ 3km, recognition distance: ≥ 1.5km |
For more information on our products, please contact Jioptik.
