JIO-C3035X 30km Laser Rangefinder Module adopts Jioptik's self-developed 1570nm OPO laser module, featuring long range, low power consumption, small size, excellent beam quality, human eye safety and easy integration.
Range Performance: 30000m(2.3x2.3m NATO target),35000m (Large building)
Ranging accuracy ±5m
Measurement accuracy≥98%
Weight ≤ 2kg
This ranging component adopts the principle of modularized split structure design, integrated into the optoelectronic pod for target indication use, and can provide the straight line distance parameter of the target object.
The laser distance measuring component has the following functions:
a) With self-test function;
b) Target distance determination;
Support software upgrade and parameter update via communication interface.
a) Wavelength: 1570nm±20nm;.
b)Energy: >5mJ (at the exit of laser light source);
c) Divergence angle: <2mrad
d)Pulse width: 15ns±5ns;
e) Ranging frequency: 0-10hz;
f) Range performance: ≥30km;(Atmospheric visibility≥25km,Reflectivity≥30%,Size 2.3x2.3m NATO Target)
≥35km(Large building,Visibility≥30km,Reflectivity≥60%)
≥40km(Max Range,Visibility≥30km,Reflectivity≥80%))
g) Minimum ranging distance: <500m
h) Ranging accuracy: ± 5m
i) Quasi-detection rate: 98%
a) Power supply: DC 24V (ripple ≥ 100mV) voltage range 18 ~ 30V (GJB181A power failure does not damage the requirements);
b) Power consumption: peak power consumption ≤ 100W, room temperature standby power consumption ≤ 50W;
c) Warm-up time: ≤ 3min (room temperature);
d) Communication interface: RS422, baud rate 115200bps;
e) Working mode: internal and external triggering are available;
f)Protection alarm function:
Over-temperature protection and report fault code;
Laser working abnormality, ranging module abnormal alarm and report fault code;
g) power supply communication interface: connector requirements J30J or J29A;
h) Quality: ≤ 2kg;
Cooling mode: air-cooled
Laser size: 220*140*72mm
Weight: <2kg

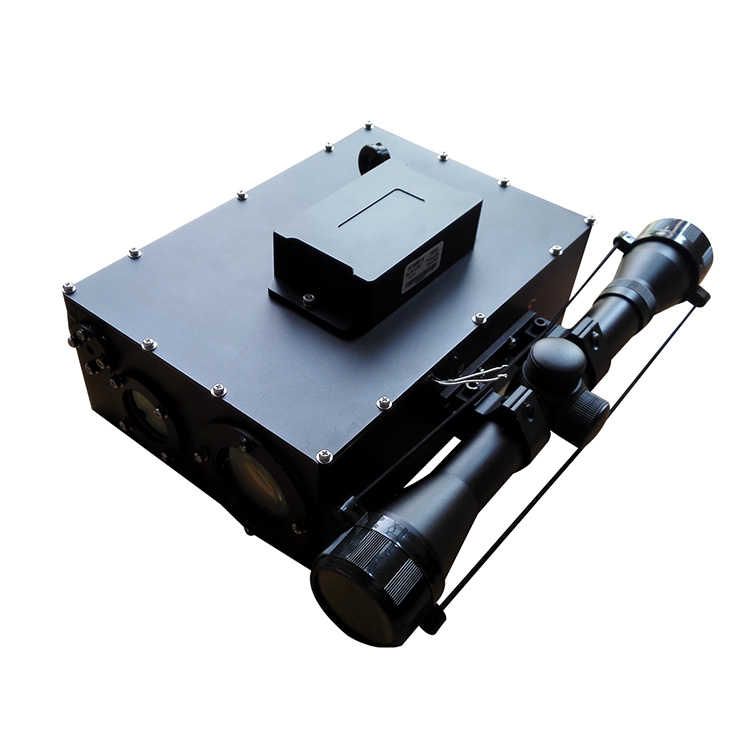

Ranging module shape reference diagram:
For more information on our products, please contact Jioptik.
