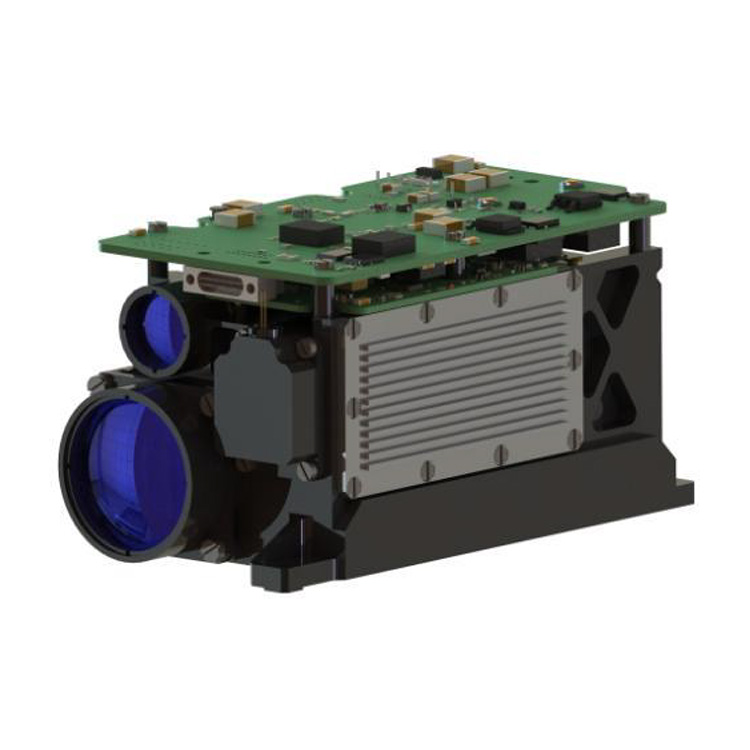

45mJ Laser Target Designator with Rangefinder
45mJ Laser Target Designator with Rangefinder

45mJ Laser Target Designator with Rangefinder

Model:STA64-D45M

China Jioptik JIO-D45M 45mJ Laser Target Designator with Rangefinder is an airborne equipment that provides sufficient guidance reflection energy for laser semi-active guided bombs and missiles,continuously tracking and implementing laser irradiation on targets.Communication is achieved through the RS422 communication interface, which has the characteristics of outstanding performance and simple operation.It has a wide range of application scenarios and the following advantages:small size,light weight,low power consumption,suitable for various platform environments such as airborne,vehicular,and shipborne.Laser wavelength:1064nm,direct contact with the human eye is prohibited.

Product Description


The following is the introduction of high quality 45mJ Laser Target Designator with Rangefinder, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!


Product Functions

Laser ranging function and real-time reporting distance value;

Power polarity reverse protection, over current and over voltage circuit protection;

Can be laser irradiated at the built-in set frequency of 20Hz;

Can be triggered by external synchronization signal for Laser Target Designator and Rangefinder (laser irradiation (external synchronization) state);

Overtemperature alarm function: When the working temperature of the Laser Target Designator and Rangefinder is too high to continue emitting laser, it can send the overtemperature alarm status information to the upper computer and protect the safety of the Laser Target Designator and Rangefinder.

laser output times reporting function;

Laser software version features


Product features:

1.Wide temperature non-thermal system design, strong anti-tuning ability, good optical axis stability, can achieve a wide temperature range of work;

2.Using unique pulse detection and automatic compensation technology, high energy stability;

3.Choose active Q-switching pump mode, fine adjustment step, high coding precision.


Product performance indicators

project Indicator data
Wavelength 1064nm±10nm
Average energy ≥45mJ
Energy stability 10% (statistics after 3s of light)
Angle of divergence ≤0.5mrad
Pulse width 15ns±5ns
Radiation distance ≥3800m
Range range ≥5km
Service frequency Single run, 1Hz, 5Hz, and 20Hz
Encoded mode Accurate frequency encoding, and external synchronization
Encoding accuracy ≤±2.5
Service voltage 18V ~32V
Standby power consumption ≤4W
Size ≤115mm×57mm×62mm
Weight ≤800g


Mechanical and optical interfaces

45mJ Laser Target Designator with Rangefinder


Electrical interface

Electrical interface requirements are as follows:

The upper computer terminal realizes the crosslinking test with the end connector master head J30JZLN15ZKWA000 through the connector plug J 30 JZ / XN15TJCAL01-300. The pins of the power supply and communication port at the metering device end are defined as shown below.


Definition of the photosensor terminal power supply and communication port pin

Socket socket J30JZLN15ZKWA000
Corresponding to the plug, J 30 JZ / XN15TJCAL01-300
The pin number Signal name explain
1 28V Power positive pole
2 28V Power positive pole
3 28V Power positive pole
4 POWER+ Laser power on controls the positive electrode
5 422_A Upper computer-> laser measurement assembly +
6 422_B Upper computer-> Laser measuring assembly-
7 422_GND 422 Communication ground wire
8 SYNC- External Synchronization Signal-
9 28VGND Power anode
10 28VGND Power anode
11 28VGND Power anode
12 POWER- The laser power on controls the negative electrode
13 422_Y Laser measuring assembly- -> upper computer +
14 422_Z Laser measuring assembly-> upper machine-
15 SYNC+ External Synchronization Signal +


Software

Communication protocol definition

The communication interface adopts RS-422 bus, and its features are as follows:

Baud rate: 38.40kbps;

Byte construction: low byte in front, high byte behind; low in front, high behind;

Byte composition format: 1 start bit, 8 data bits, 1 stop bit;

Communication cycle: 20ms.

The system software sends the instructions to the laser photo reader

The control command information format is shown below.

Control command information received by the viewer

order number Information name byte data remarks
0 Frame head 0x55
1 Command word 1 0x00 await the opportune moment
0x02 Single ranging
0x03 1HZ ranging
0x04 5HZ ranging
0x05 shining
0x08 Stop the ranging / irradiation
0x0A Report the cumulative number of laser pulses
2 Command word 2 Laser irradiation: laser code 1~8
3 Command word 3 During irradiation: laser irradiation time setting (1~47)
4 Frame tail verification Results of 0-3 bytes


The photographic detector return data is shown below.

Data returned by the photo tester

order number name explain remarks
0 Frame head 0x55
1 State word 1 See Table 4
2 Distance value high bytes / cumulative laser pulses high bytes
3 Distance value low bytes / cumulative laser pulses low bytes
4 temperature
5 Frame tail verification Results of 0-4 bytes

Status word 1 information definition

BIT07 BIT06 BTI05 BTI04 BTI03 BTI02 BTI01 BTI00
0: No laser
1: There is a laser
0: The range is effective
1: Invalid range measurement
Laser logo
Alternate 1 / 0
1: Overtemperature alarm
0: The temperature is normal
00: Standby
01: Distance measurement
02: Instructions
