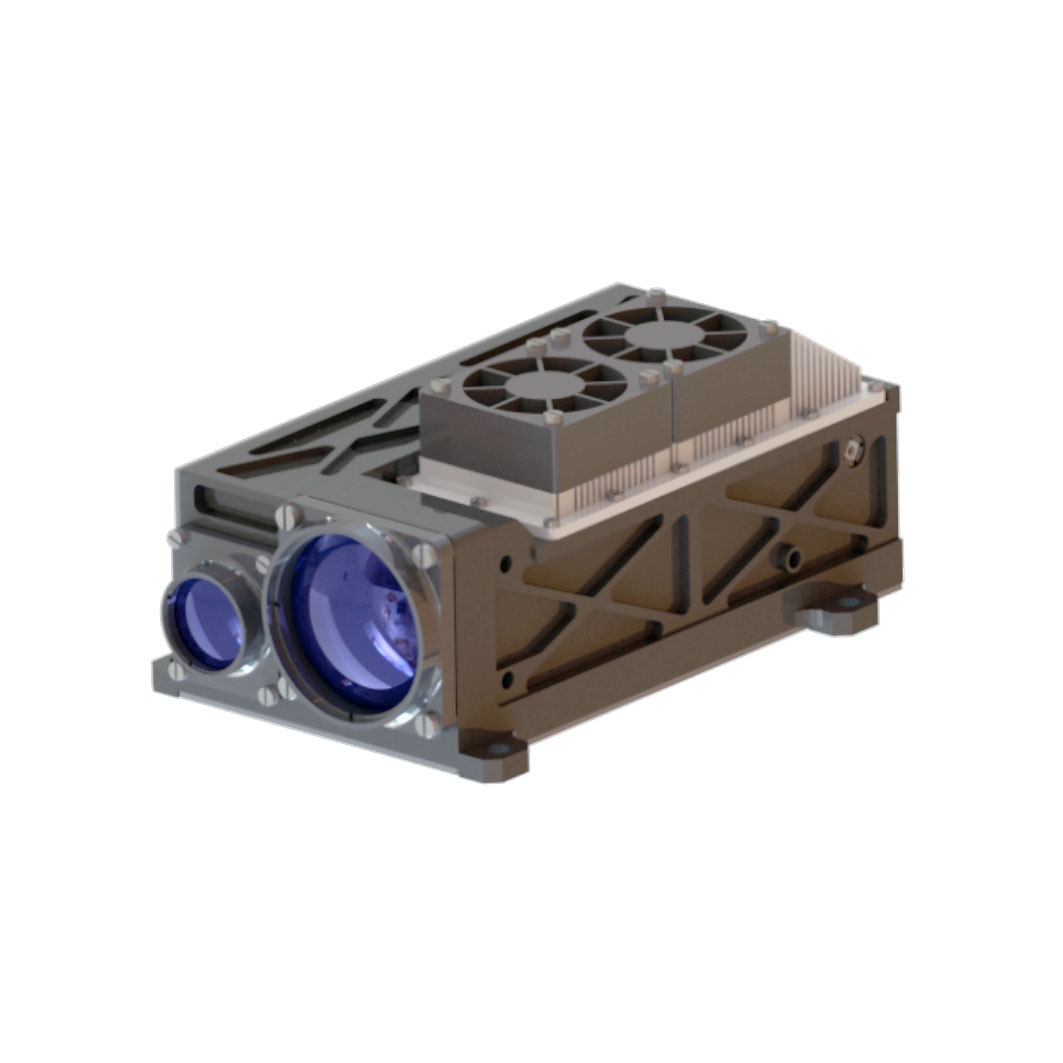

STA64-D60M 60mJ Laser Target Designator and Rangefinder is an airborne equipment that provides sufficient guidance reflection energy for laser semi-active guided bombs and missiles, continuously tracking and implementing laser irradiation on targets.Communication is achieved through the RS422 communication interface, which has the characteristics of outstanding performance and simple operation.It has a wide range of application scenarios and the following advantages: small size, light weight, low power consumption, suitable for various platform environments such as airborne, vehicular, and shipborne.Laser wavelength: 1064nm, direct contact with the human eye is prohibited.
High quality 60mJ Laser Target Designator and Rangefinder is offered by China manufacturer Jioptik. Buy Laser Target Designator and Rangefinder which is of high quality directly with low price. The Jioptik team can provide customized services, contact Jioptik.
Laser ranging function and real-time reporting distance value;
Power polarity reverse protection, over current and over voltage circuit protection;
Can be laser irradiated at the built-in set frequency of 20Hz;
Can be triggered by external synchronization signal for Laser Target Designator and Rangefinder (laser irradiation (external synchronization) state);
Overtemperature alarm function: When the working temperature of the Laser Target Designator and Rangefinder is too high to continue emitting laser, it can send the overtemperature alarm status information to the upper computer and protect the safety of the Laser Target Designator and Rangefinder.
laser output times reporting function;
Laser software version features
1.Wide temperature non-thermal system design, strong anti-tuning ability, good optical axis stability, can achieve a wide temperature range of work;
2.Using unique pulse detection and automatic compensation technology, high energy stability;
3.Choose active Q-switching pump mode, fine adjustment step, high coding precision.
| Item | Index data |
| Model | STA64-D60M |
| Wavelength | 1064nm±10nm |
| Ranging capability | ≥8000m |
| Ranging Blind Zone | ≤200m |
| Ranging accuracy | ±2m |
| Accuracy rate | ≥98% |
| Distance Resolution | ≤50m |
| Distance Selection | ≥200m |
| Operating Frequency | Once、1Hz、5Hz、20Hz |
| Laser continuous ranging time | ≥30min(1Hz)、≥10min(5Hz) |
| Laser continuous irradiation time |
Short cycle irradiation: light output 35s rest 30s Long cycle irradiation: light output 60s rest 60s |
| Weight | ≤1000g |
| Dimension | ≤160mm×100mm×71mm |
| Voltage | 18V～32V |
| Power Consumption |
Standby power consumption: ≤10W Average power consumption: ≤60W |
| Environmental adaptability |
Working Temperature：-40℃～60℃ Storage temperature：-55℃～70℃ |
| Average energy | ≥60mJ |
| Energy Stability | ≤8%(Statistics after 2 seconds of light output) |
| Angle of divergence | ≤0.4mrad |
| Pulse width | 15ns±5ns |
| Irradiation distance | ≥5100m |
| Encoding mode | Precise frequency encoding, external synchronization |
| Encoding frequency | 45ms~65ms |
| Encoding precision | ≤±2.5μs |
Bus: RS422, baud rate 115200bps;
Power supply: 28V, power supply normal operating range 18V ~ 36V;
Power consumption: average power consumption ≤ 60W, standby power consumption: ≤ 10W;
Laser Target Designator and Rangefinder end connector model J30J-21ZKP, the upper computer end connector model J30J-21TJL, Laser Target Designator and Rangefinder end power supply and communication port pin definition is shown in Table 1;
Table 1Laser Target Designator and Rangefinder side power supply and communication port pin definition
| Serial number | Name | Description | Remarks |
| 1-5 | +28V | ||
| 12-16 | +28V_GND | ||
| 6 | T+ | Laser Illuminator Send | RS422 communication |
| 7 | T- | ||
| 8 | R- | Laser Illuminator Reception | |
| 9 | R+ | ||
| 10 | GND | Communication ground | |
| 17 | SYNC_IN+ | Laser Illuminator Reception | Sync signal input |
| 18 | SYNC_IN- | ||
| 19 | SYNC_GND | Laser Illuminator Output | External synchronization output reserved |
| 20 | SYNC_OUT+ | ||
| 11 | control signal+ | Power-up control | Power-on control reserved |
| 21 | control signal_GND |
