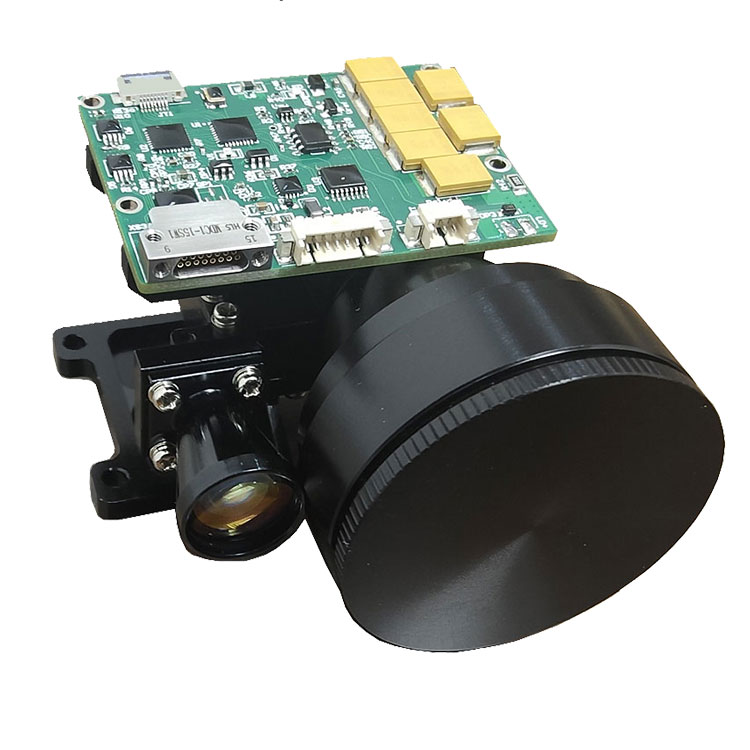

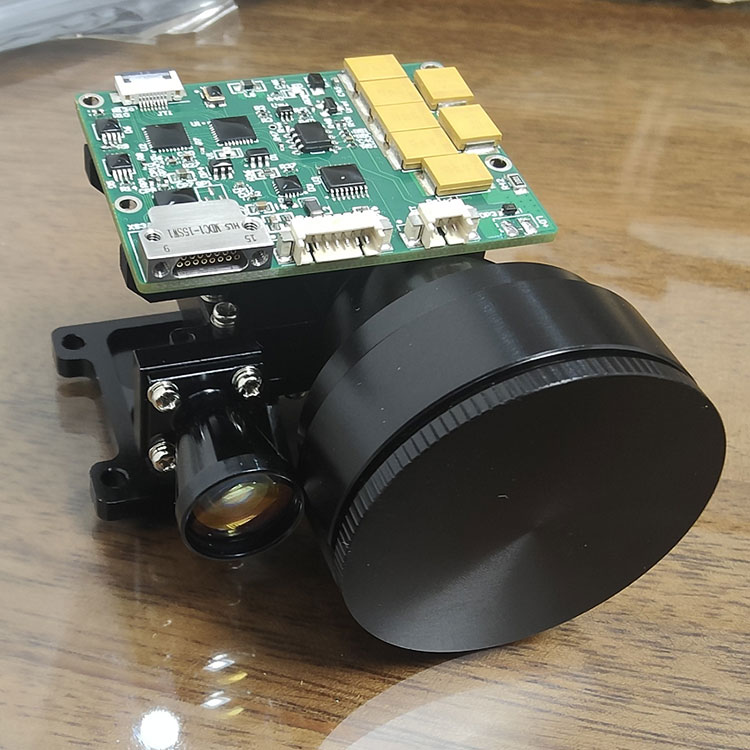

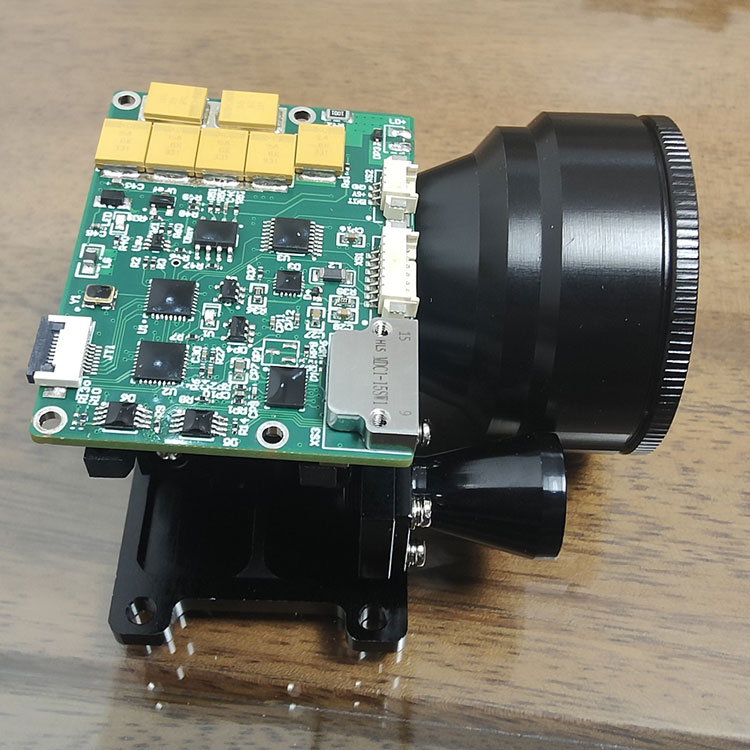

● As the professional manufacturer, we would like to provide you high quality 8km Eye Safety Laser Rangefinder Module. JIO-B0815X laser rangefinder module adopts self-developed 1535nm erbium glass laser component, which has the features of long range, low power consumption, small size and human eye safety.
● Range performance: 8000m (2.3x2.3m NATO Target),15000m (Maximum range)
● Ranging accuracy ± 2m
● Measurement accuracy ≥ 98%
● Weight ≤ 120g
The B0815X 8km Eye Safety Laser Rangefinder Module is a military pulse laser rangefinder designed for application scenarios such as aircraft, UAV Pods, tanks, and scope. It has small size, light weight, low power consumption, stable performance, long measurement distance, and long service life, Human eye safety and other advantages, it is an important technical equipment to improve product aiming accuracy.
| Item | Technical parameter | Instruction |
| Model | JIO-B0815X | |
| Working wavelength | 1535±5nm | |
| Ranging capability | 50m-15km | |
| Ranging range | ≥15000m | Max Range |
| ≥12000m | Big target,Reflectivity: 0.6, observer visibility 25 km | |
| ≥8000m | 2.3m×2.3m NATO target, Reflectivity: 0.3, observer visibility 15 km | |
| ≥4000m | People target size,Reflectivity: 10 %, observer visibility 15 km | |
| ≥2500m | UAV | |
| Ranging accuracy | ±2m | 3δ |
| Ranging frequency | 1~10Hz adjustable | |
| Accuracy rate | ≥98% | |
| Divergence angle | ≤0.5mrad | |
| Receiving caliber | 40mm | |
| Communication Interface | RS422 | |
| Voltage | DC18~32V | |
| Working power | ≤1.2W(@1hz) | Normal temperature test |
| standby power | ≤0.5W | Normal temperature test |
| Working temperature | -40℃～+60℃ | |
| Storage temperature | -45℃～+70℃ | |
| Size | ≤79mm×66mm×46mm | |
| Weight | ≤120g | |
| Connector model: MDC1-15SW1 | |||
| Pin number | Definition | Function | Remark |
| 1 | VEE | power input positive | DC18-36V |
| 2 | GND | power input ground | |
| 3 | RS422_T/R+ | RS485+/RS422 send positive | |
| 4 | RS422_T/R- | RS485+/RS422 send nagative | |
| 5 | RS422_RXD- | RS422 receive negative | |
| 6 | RS422_RXD+ | RS422 receive positive | |
| 7 | RS232-TX | RS232 send | |
| 8 | RS232-RX | RS232 take over | |
| 9 | TTL-TX | TTL send | 3.3V |
| 10 | TTL-RX | TTL take over | 3.3V |
| 11 | GND | place of communication | |
| 12 | NC | Alternate | |
| 13 | NC | Alternate | |
| 14 | NC | Alternate | |
| 15 | NC | Alternate | |
Environmental adaptability
a) working temperature:-40℃～+60℃.
b) Storage temperature:-45℃～+70℃.
C) Random vibration: 15～2000Hz, 3 directions. The specific test conditions are shown in Table 1.
Table 1 Random vibration test conditions
| Serial number | Frequency range (Hz) | Acceleration spectral density (g2/Hz) | Vibration time (min) |
| 1 | 15～190 | 0.01 | Vibration in every direction 15 min |
| 2 | 190～210 | 0.1 | |
| 3 | 210～380 | 0.01 | |
| 4 | 380～420 | 0.025 | |
| 5 | 420～2000 | 0.01 |
OEM/ODM ranging modules and custom solutions
The B0815X is designed for system integrators looking for a convenient, powerful and compact laser ranging solution. It provides reliable performance in a wide range of applications.
It is very small, ultra-light, has low power consumption and can be measured over a long distance. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and UAV or UGVs.
For more information on our products, please contact Jioptik.
