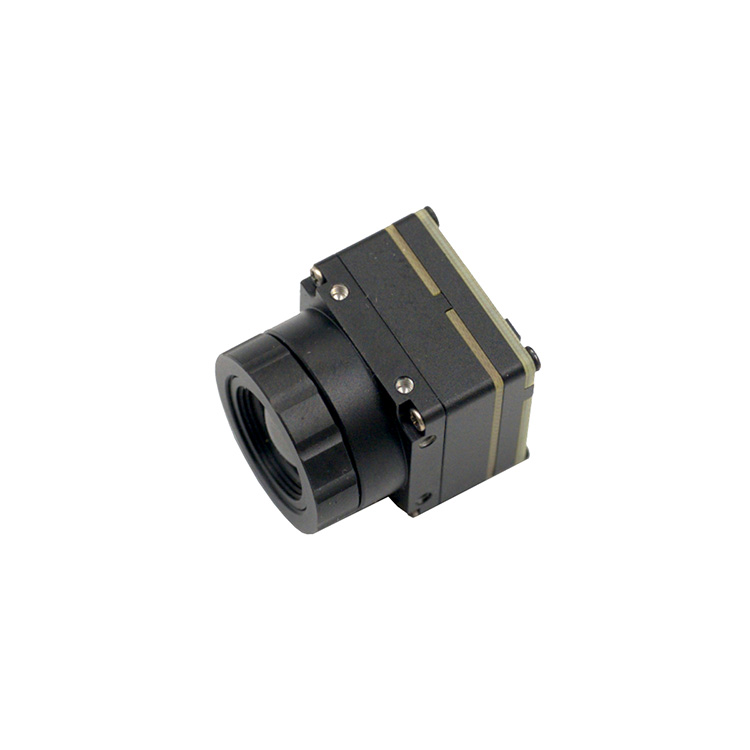

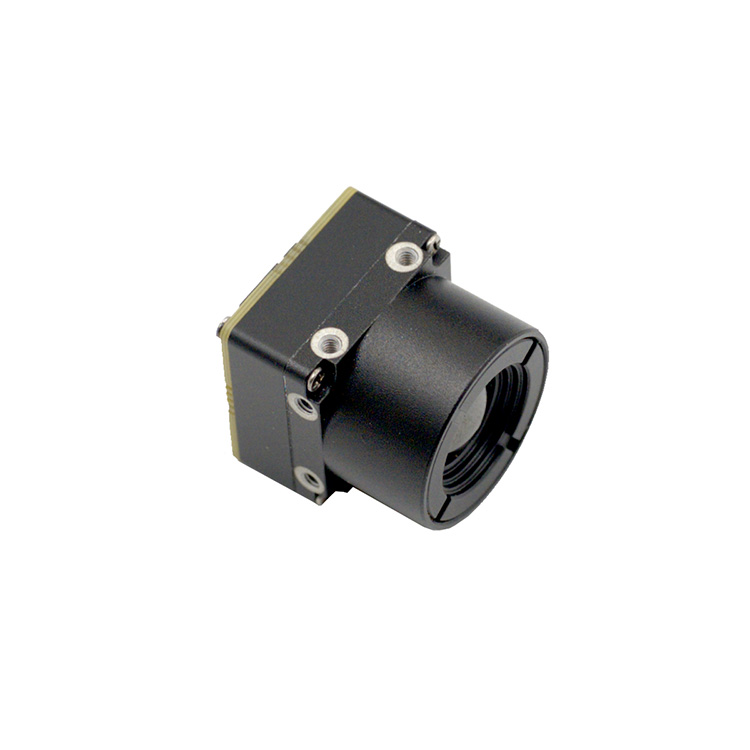

LWIR M-Series Thermal Imaging Camera Module adopts new self-developed 12 μm VOx infrared detector and a custom ASIC infrared image processing chip. It features a compact size, lighter weight, and lower power consumption. The 256/384/640 series of infrared modules achieve a size of 21mm×21mm, meeting the application requirements of SWaP3 (Size, Weight and Power, Performance, Price).
LWIR M-Series Thermal Imaging Camera Module is widely used in the integration of miniaturized UAV pods, robotic dogs, and handheld micro devices.
Autonomous core, cost-effective:
1)The 12μm WLP infrared detectors in the 256/384/640 M-series offer excellent value for cost and are the optimal choice for the same resolution.
2)The high-performance LY ASIC infrared image processing chip has completely independent core technology and supply.
Outstanding performance, lightweight and convenient:
1)Provide smooth and high-definition images, supporting up to 50Hz lossless image quality.
2)Two precise temperature measurement modes cover a wide temperature range and ensure temperature stability in different ambient temperatures.
3)The entire series has ultra-compact size of 21mm×21mm, with a module body weighing less than 8g, making integration easy.
Rich functions, multiple options:
1)Lensless solutions, manual/auto-focus non-thermalized lenses cover various scenarios.
2)Abundant Windows/Linux/Android SDK interfaces provide diverse functionality.
| Overview | M-640 | M-384 | M-256 |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector | ||
| IR Wavelength | 8～14μm | ||
| Resolution | 640×512 | 384×288 | 256×192 |
| Pixel Pitch | 12μm | ||
| NETD | ≤50mK@25℃,F#1.0 (≤40mK optional) | ||
| Thermal Time Constant | ＜12ms | ||
| Detector Framerate |
Temperature measurement module: 25Hz; Imaging module: 50Hz |
25Hz | |
| Non-uniformity Correction | Auto Shutter Correction | ||
| Image Output Formats | 10bit/14bit (configurable) | ||
| Focusing Mode | Fixed focus/Manual focus | ||
| Image Adjustment | |||
| Brightness | 0~255 (configurable) | ||
| Contrast | 0~255 (configurable) | ||
| Polarity | White-hot/Black-hot | ||
| Palette | Supported | ||
| Mirroring | Vertical/Horizontal/Diagonal | ||
| Image Processing | TEC-less Algorithm | ||
| Non-uniformity Correction | |||
| Digital Filtering Noise Reduction | |||
| Digital Detail Enhancement | |||
| Electricity | |||
| Input Supply Voltage | 3.3V | ||
| Video Output Format | DVP, BT656, USB, CVBS (white-hot) | ||
| Command and Control Interface | I2C | ||
| Typical Power Consumption @25℃ | Normal: <0.55W | Normal: <0.50W | Normal: ＜0.30W |
| Physical Characteristics of Module (lens and flange not included) | |||
| Package Dimension (W×L×H) | 21mm×21mm×8mm | ||
| Weight | <8 g | ||
| Thermography | |||
| Measurement Range | High-quality: -20℃ ~ +150℃; Wide-range: 0℃ ~ +550℃ | ||
| Measurement Accuracy (typ.) |
Accuracy for range -20℃~+150℃: ±2℃ or ±2% (choose the greater value) ， @- 20℃~60℃ ambient temperature Accuracy for range 0℃~+550℃: ±3℃ or ±3% (choose the greater value) ， @- 20℃~60℃ ambient temperature |
||
| Environment | |||
| Operating Temperature | -40℃~+80℃ | ||
| Storage Temperature | -50℃~+85℃ | ||
| Humidity | 5%-95%, non-condensing | ||
| Vibration | 6.06g, random vibration, all axes | ||
| Impact | 80g@4ms, final peak sawtooth wave, three axes and six directions | ||
For more information on our products, please contact Jioptik.
