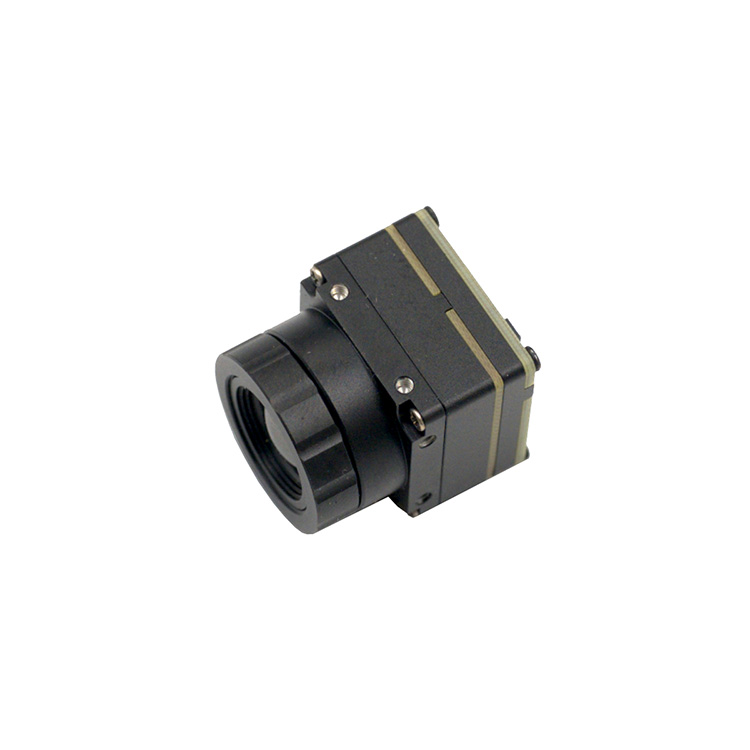

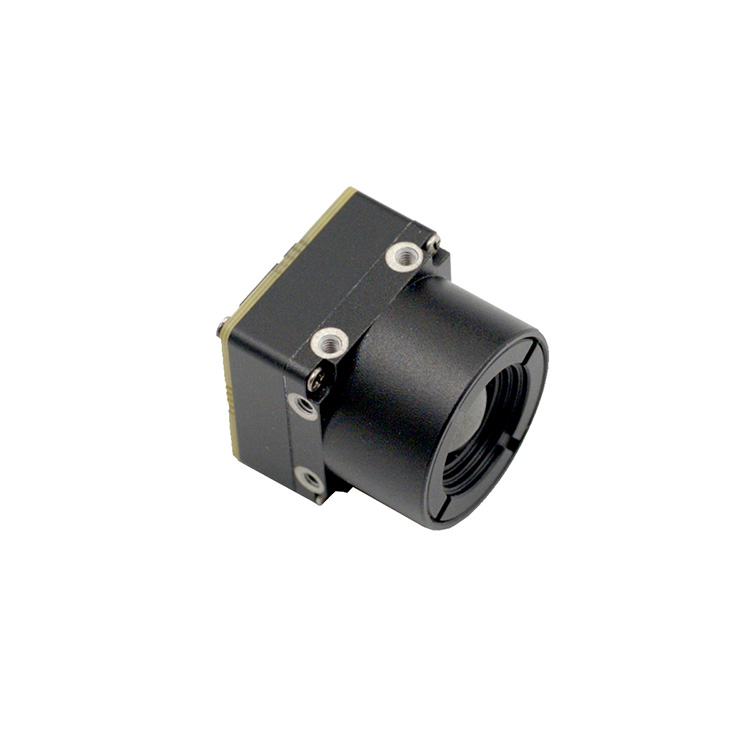

LWIR M640 UAV Pod Thermal Camera Module adopts new self-developed 12 μm VOx infrared detector and a custom ASIC infrared image processing chip. It features a compact size, lighter weight, and lower power consumption. The M640 infrared modules a size of 21mm×21mm, meeting the application requirements of SWaP3 (Size, Weight and Power, Performance, Price).
LWIR M640 UAV Pod Thermal Camera Module is widely used in the integration of miniaturized UAV pods, robotic dogs, and handheld micro devices.
Autonomous core, cost-effective:
1)The 12μm WLP infrared detectors in the 256/384/640 M-series offer excellent value for cost and are the optimal choice for the same resolution.
2)The high-performance LY ASIC infrared image processing chip has completely independent core technology and supply.
Outstanding performance, lightweight and convenient:
1)Provide smooth and high-definition images, supporting up to 50Hz lossless image quality.
2)Two precise temperature measurement modes cover a wide temperature range and ensure temperature stability in different ambient temperatures.
3)The entire series has ultra-compact size of 21mm×21mm, with a module body weighing less than 8g, making integration easy.
Rich functions, multiple options:
1)Lensless solutions, manual/auto-focus non-thermalized lenses cover various scenarios.
2)Abundant Windows/Linux/Android SDK interfaces provide diverse functionality.
| Overview | M-640 |
| Detector Type | Vanadium Oxide Uncooled Infrared Focal Plane Detector |
| IR Wavelength | 8～14μm |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| NETD | ≤50mK@25℃,F#1.0 (≤40mK optional) |
| Thermal Time Constant | ＜12ms |
| Detector Framerate | Temperature measurement module: 25Hz; Imaging module: 50Hz |
| Non-uniformity Correction | Auto Shutter Correction |
| Image Output Formats | 10bit/14bit (configurable) |
| Focusing Mode | Fixed focus/Manual focus |
| Image Adjustment | |
| Brightness | 0~255 (configurable) |
| Contrast | 0~255 (configurable) |
| Polarity | White-hot/Black-hot |
| Palette | Supported |
| Mirroring | Vertical/Horizontal/Diagonal |
| Image Processing | TEC-less Algorithm |
| Non-uniformity Correction | |
| Digital Filtering Noise Reduction | |
| Digital Detail Enhancement | |
| Electricity | |
| Input Supply Voltage | 3.3V |
| Video Output Format | DVP, BT656, USB, CVBS (white-hot) |
| Command and Control Interface | I2C |
| Typical Power Consumption @25℃ | Normal: <0.55W |
| Physical Characteristics of Module (lens and flange not included) | |
| Package Dimension (W×L×H) | 21mm×21mm×8mm |
| Weight | <8 g |
| Thermography | |
| Measurement Range | High-quality: -20℃ ~ +150℃; Wide-range: 0℃ ~ +550℃ |
| Measurement Accuracy (typ.) |
Accuracy for range -20℃~+150℃: ±2℃ or ±2% (choose the greater value) ， @- 20℃~60℃ ambient temperature Accuracy for range 0℃~+550℃: ±3℃ or ±3% (choose the greater value) ， @- 20℃~60℃ ambient temperature |
| Environment | |
| Operating Temperature | -40℃~+80℃ |
| Storage Temperature | -50℃~+85℃ |
| Humidity | 5%-95%, non-condensing |
| Vibration | 6.06g, random vibration, all axes |
| Impact | 80g@4ms, final peak sawtooth wave, three axes and six directions |
For more information on our products, please contact Jioptik.
